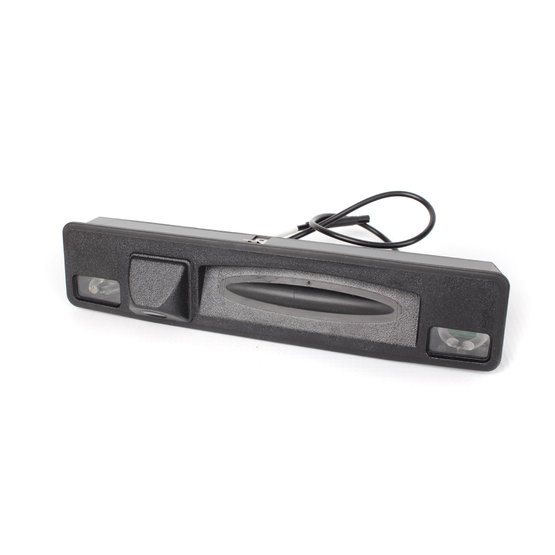

BC FORD-08 Rearview camera in handle Focus III

OEM Parking Camera for Ford Focus III. sedan (16-) to be installed in 5-door opening handle place. The camera includes LED light, the switch and free wires to connect the door opening wiring.

Suitable for the car models:

• Ford Focus III. sedan (16-)

Technical parameters:

• sensor: 1/4"
• shows the guide lines
• electronic Aperture: 1/50 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (supported by each monitor/head unit)
• number of TV lines: 480
• weather protection: IP68
• view angle: 170°
• operating temperature from -30 °C to + 70 °C
• white balance: automatically
• signal cable: 7 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 44 x 200 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
