Discontinued

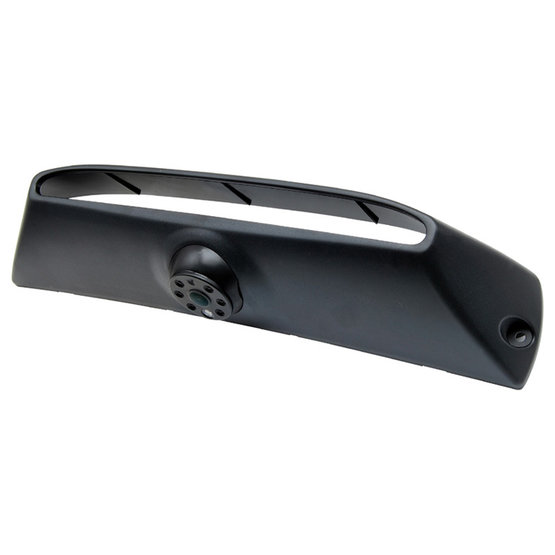

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Iveco vans.
Suitable for cars:
- IVECO Daily (2006-2013)
Note. It is necessary to check out the compatibility depending on the version of vehicle! (the physical shape of the camera body)
Technical parameters:
- Sharp CCD 1/4" sensor chip
- IR LEDs (6 pieces)
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated RCA connectors (CINCH)
- power cable length 1 m
Camera dimensions:
- base 73 x 350 mm
- hole pitch for screws 327 mm
- depth of base 52 mm
Parameters
Brand of the car | Iveco |
---|---|
Model of the car | Daily III. |
Weight | 0.977 kg |
