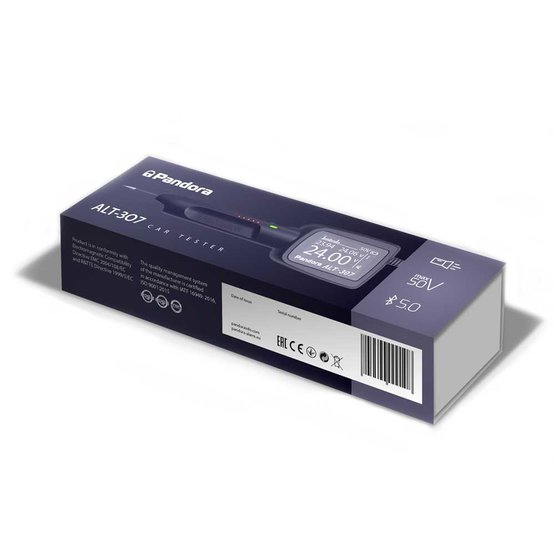

Pandora ALT-307 Multifunctional auto electrician’s device
|
ALT-307
Universal multifunctional car electricians tool instrument specially developed for working with vehicle electrical systems. It has seven modes: DC voltage measurement, frequency measurement, pulse duration and polarity measurement, signal generation, digital bus identification, oscilloscope and relay testing. The instrument is designed with an emphasis on protecting the vehicle's electronic systems, minimizing the risk of damage during diagnostics and signal search. The ergonomically designed case, adapted to difficult working conditions, ensures comfortable and safe use when installing security systems and additional equipment.
Universal multifunctional car electricians tool instrument specially developed for working with vehicle electrical systems. It has seven modes: DC voltage measurement, frequency measurement, pulse duration and polarity measurement, signal generation, digital bus identification, oscilloscope and relay testing. The instrument is designed with an emphasis on protecting the vehicle's electronic systems, minimizing the risk of damage during diagnostics and signal search. The ergonomically designed case, adapted to difficult working conditions, ensures comfortable and safe use when installing security systems and additional equipment.
Technical parameters:
- Constant voltage measurement 0 - 60V
- Informative display and indicators
- Seven operating modes
- Switched load 50 Ohm and 1 KOhm
- LCD display and measuring point illumination
- USB C connector and rechargeable integrated battery
- Bluetooth 5.0 wireless interface
- Replaceable contact steel needle
- Additional measuring probe
Warning: Do not exceed 50 V when measuring! This could damage the device.
Parameters
| Accessories | Accessories |
|---|---|
| Type | Alarm accessories |
| Weight | 0.2 kg |
