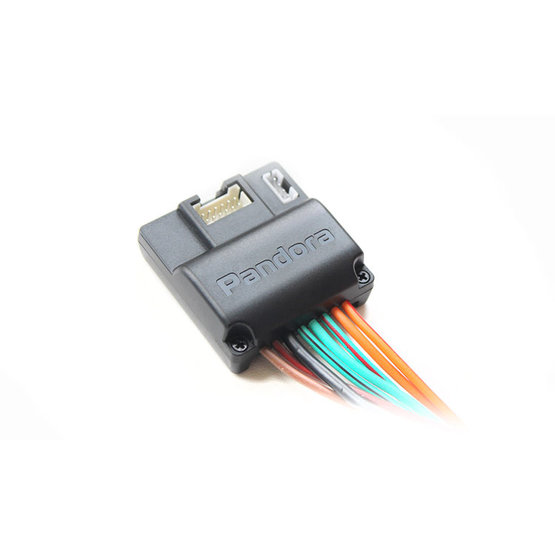

Pandora RMD-8 relay module
|
Pandora RMD-8
Relay modul with temperature sensor for systems SMART, ELITE, PROFESSIONAL.
The RMD-8 module is mainly used for analogue remote start-up, allowing you to extend system capabilities by connecting 3 power outputs (up to 20A), adding 8 programmable outputs and 4 analog inputs. The module can monitor these signals: engine temperature, engine speed, charging, handbrake / neutral.
| Parameter | Value |
| Subscription | Less than 7mA |
| Power voltage | 9-15 V |
| Range of operating temperatures | od -40°C do +85°C |
| Maximum current load? | |
| RMD OUT1 (+) | 1A |
| RMD OUT2 (+) | 1A |
| RMD OUT3 (-) | 200mA |
| RMD OUT4 (-) | 200mA |
| RMD OUT5 (-) | 200mA |
| RMD K1 | 20A |
| RMD K2 | 20A |
| RMD K3 | 20A |
| Allowed speed signal amplitude | 3-300V |
| Dimensions | 45,5x44x17mm |
Parameters
| Type | Alarm accessories |
|---|---|
| Manufacturer | Pandora |
| Weight | 0.275 kg |
