Parking assistant with camera Steelmate PTSV404-V037
4 rear sensor system with camera and 3" high resolution TFT monitor. Parking assist lines on monitor for assisting in safe parking. Colour parking camera with viewing angle of 100 degrees designed for installation in the rear bumper of the vehicle. Diameter of camera 18,5 mm.
Discontinued
4 rear sensor system with camera and 3" high resolution TFT monitor. Parking assist lines on monitor for assisting in safe parking. Colour parking camera with viewing angle of 100 degrees designed for installation in the rear bumper of the vehicle. Diameter of camera 18,5 mm.
System Description:
- TFT LCD monitor with parking assist lines
- OSD menu
- flush mount camera
- shock, vibration and water resistant camera
- PAL mode
- accurate digital distance and clear rearview shown on the monitor
- audible warning and voice warning (optional), volume adjustable
- self-test function
- anti-false alert technology
- excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
- angle washers 0°, 4°, 10° included in the package
- sensors core diameter 14 mm
- mounting hole 18,8 mm
- sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
Technical parameters:
- supply voltage: 12V DC
- working power: <2.5 W
- detection range: 0.3 ~ 1.5 m
- operating temperature: -40 ~ 80
- sensor diameter 18,5 mm

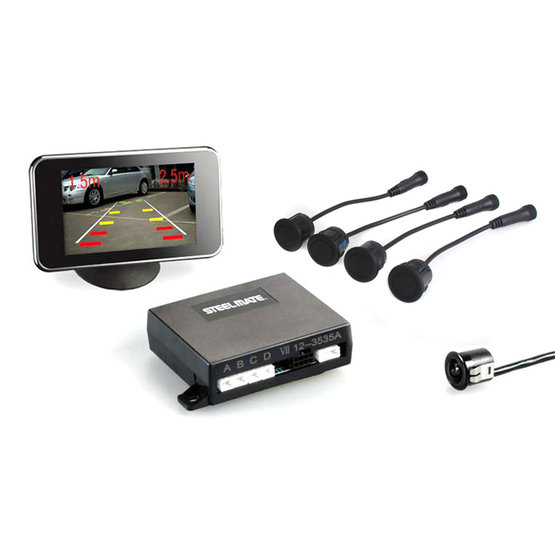

Package:
- 4pcs parking sensors
- LCD TFT monitor
- flush-mount camera
- control unit
- wiring
- drill
- manual
- warranty card
Parameters
Power Suply | 12VDC |
---|---|
Number of sensors | 4 sensors |
Display | LCD display |
Manufacturer | Steelmate |
Weight | 1.692 kg |
