Parking sensors FBSN-4SD

Rear parking system APRI with 4 sensors and LED display. 3 different sensor adapters, „hook corrections“ function, MUTE function, sensitivity for each sensor. It contains control unit, harness, rear sensors.
Set not includes drill - drill holes are depending by type of bracket - O18/22/24mm.

Function

• Temporary deactivation of rear sensors (by switch or by towing bar socket)
• MUTE function - car audio is automatically faded-out during indication of obstacles
• Fault sensor is automatically detected
• Settable volume of the speaker

Technical parameters

• Supply voltage: 9-30V DC
• Current consumption: 350 mA max.
• Operational temperature: -25 / + 70°C
• Working frequency: 40kHz
• Detection range of rear sensors: max. 180 cm (default on 160 cm)

Package

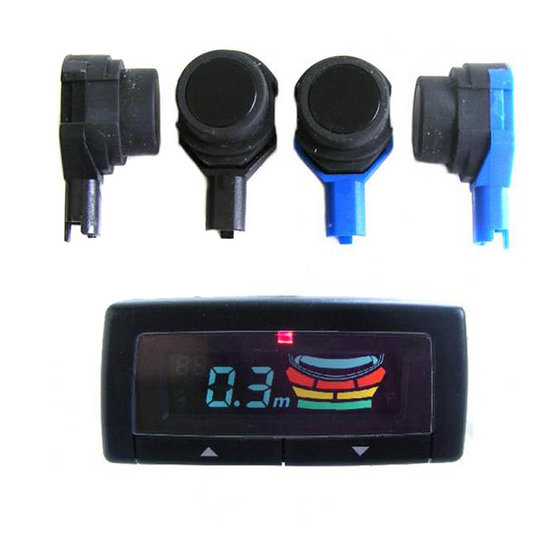

• 4 rear sensors (two central are with black colour, two corner are with blue colour)
• Control unit
• Rear cable harness
• Control device with LCD display and operating buttons
