Parking sensors FBSN-8RF

Parking assistant APRI PM FBSN-8RF is top quality european product. The model contains 8 sensors determined for mounting into front and rear bumper, also wireless display and 3 different sensor adapters included.

Set not includes drill - drill holes are depending by type of bracket - O18/22/24mm.

Function:

• Automatic deactivation of the front sensors, if the speed exceeds approximately 10km/h (speed signal must be connected)
• Temporary deactivation of front sensors by timer
• Temporary deactivation of rear sensors (by switch or by towing bar socket)
• MUTE function - car audio is automatically faded-out during indication of obstacles
• Time window - front sensor are active after the ignition switching ON
• Fault sensor is automatically detected
• Settable volume of the speaker (located inside display unit)

Technical parameters:

• Supply voltage: 9-30V DC
• Current consumption: 350 mA max.
• Operational temperature: -25 / + 70°C
• Working frequency: 40kHz
• Detection range of front sensors: max. 95 cm (default on 80cm)
• Detection range of rear central sensors: max. 180cm (default on 160cm)

Package:

• 4 front sensors (marked with brown colour)
• 4 rear sensors (two central are marked with black colour, two corner are marked with blue colour)
• main control unit
• rear control unit
• front cable harness + Rear cable harness
• rear cable harness with link cable

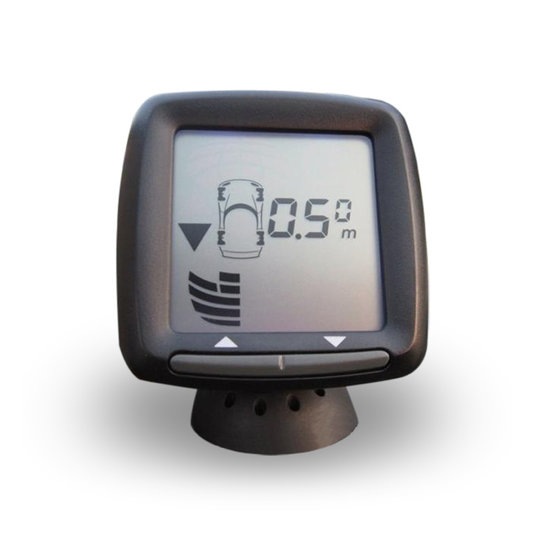

• display
• sensors holders
