Parking sensors Steelmate PTS400V1

| PTS400V1

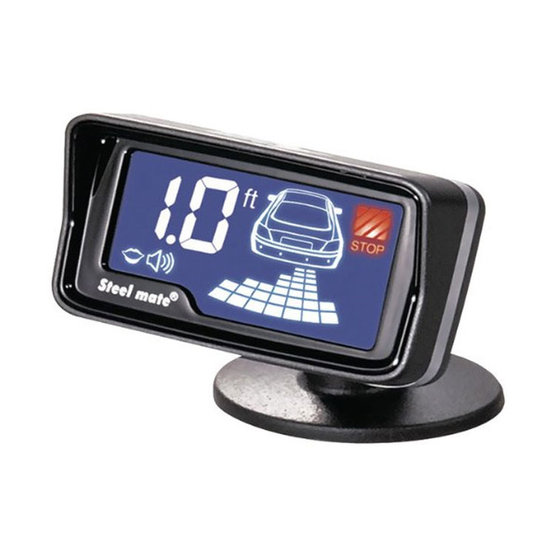

Rear parking system STEELMATE PTS400EX with blue LCD display V1. Suitable for mounting on the vehicles dashboard.


Discontinued Prejsť na nový model

Rear parking system STEELMATE PTS400EX with LED display V1. Suitable for mounting on the vehicles dashboard.

System Description:

  • acoustic and visual alarm (LED + number)
  • V1 LED display
  • fast obstacle detection
  • automatic detection of damage sensors
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)

Technical parameters:

  • supply voltage: 12V DC
  • working power: <2.5 W
  • detection range: 0.1 ~ 2.5 m
  • display range: 0.3 ~ 2.5 m
  • operating temperature: -40  ~ 80
  • buzzer: 70 ~ 90 db
  • sensor diameter 18,5mm

Package:

  • 4pcs parking sensors
  • V1 LED display
  • control unit
  • wiring
  • drill
  • manual
  • warranty card

Parameters

Sensors colour black matt
Power Suply 12VDC
Manufacturer Steelmate
Number of sensors 4 sensors
Display LCD display
Weight 0.733 kg
