Discontinued

Parking sensors Steelmate PTS800M7M8

| PTS800M7M8

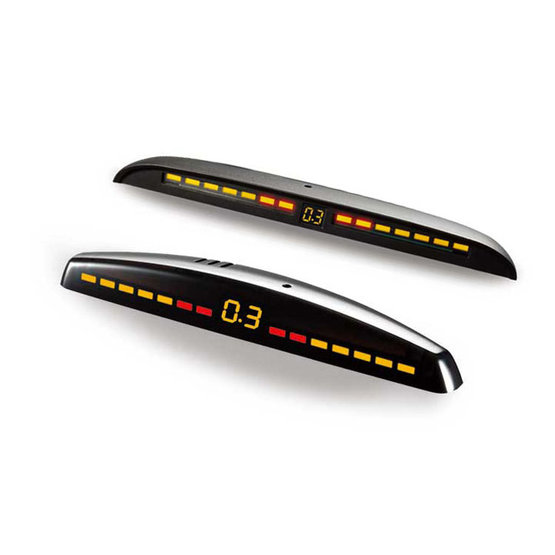

Front and rear Park Assist system STEELMATE with 8 sensors, 2 slim LED displays (M7 and M8) and automatic radio mute function. Dashboard/interior mirror/rear roof installation.


Discontinued Prejsť na nový model

Front and rear Park Assist system STEELMATE with 8 sensors, 2 slim LED displays (M7 and M8) and automatic radio mute function. Dashboard/interior mirror/rear roof installation.

System description:

  • acoustic and visual signalisation (LED diodes + number)
  • sensors are mounted in the front and back bumper
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)
  • fast obstacle detection
  • automatic detection of damaged sensor

Technical parameters:

  • supply voltage: 12V DC
  • working power: <2.5 W
  • detection range: 0,1 ~ 2,5 m
  • display range: 0,3 ~ 2,5 m
  • operating temperature: -40 ° ~ 80 °
  • buzzer: 70 ~ 90 db
  • display dimensions M7: 147x15x18 mm
  • display dimensions M8: 147x15x18 mm
  • sensor diameter 18,5mm

Package:

  • 8pcs of parking sensor
  • LED display M7 and M8
  • control unit
  • wiring
  • drill
  • manual
  • warranty card

Parameters

Manufacturer Steelmate
Power Suply 12VDC
Number of sensors 8 sensors
Display LED display
Sensors colour black matt
Weight 1.6 kg
