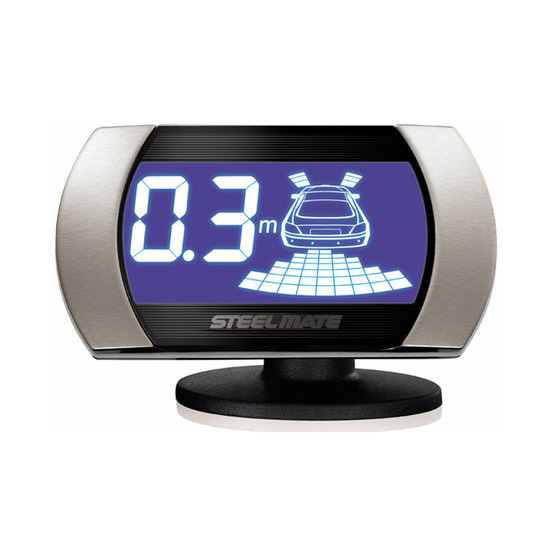

Parking sensors Steelmate PTS800V2

| PTS800V2

Front and rear Park Assist system STEELMATE with 8 sensors, 1 widescreen LCD display.Anti-false alert technology. Intelligent detection, compatible with spare wheel.


Discontinued Prejsť na nový model

Front and rear Park Assist system STEELMATE with 8 sensors, 1 widescreen LCD display. Anti-false alert technology. Intelligent detection, compatible with spare wheel.

System description:

  • acoustic, voice and visual signalisation
  • LCD display V2
  • sensors are mounted in the front and back bumper
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)

Technical parameters:

  • supply voltage: 12V DC
  • detection range: 0.1 ~ 2.99m; 0,1 ~ 0,99m
  • Operating temperature: -40 ° ~ 80 °
  • Buzzer: 50 ~ 70 db
  • working power: <2.5 W
  • display range: 0.3 ~ 2.5m; 0,1 ~ 0,9m
  • Sensor diameter 18,5mm

Package:

  • 8pcs of parking sensor
  • LCD display V2
  • control unit
  • wiring
  • drill
  • manual
  • warranty card

Parameters

Display LCD display
Sensors colour black matt
Number of sensors 8 sensors
Manufacturer Steelmate
Power Suply 12VDC
Weight 2.05 kg
