Pressure and temperature tire monitoring system Steelmate TP-05

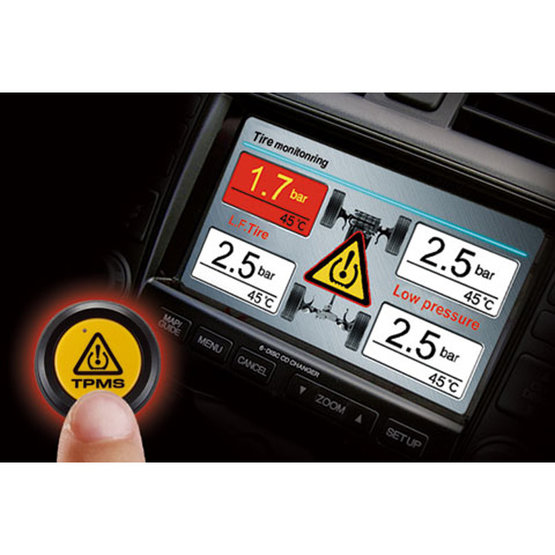

Pressure and temperature tire monitoring system Steelmate, with 4 sensors integrated into the tire valve, with a wireless button and acoustic signalisation. The system displays the values ??on the device with A/V input. OEM radio, multimedia ROADROVER radio or GPS device as well can be used for displaying the values. For programming the sensors tyre deflating method is used.

Main Features:

• The device allows you to connect to the original A/V monitor
• Accoustic and visual indications if the valuse exceeding the set values ??of pressure and temperature
• The system displays on the immediate pressure and temperature of tires by pressing the wireless button
• Works with PAL or NTSC
• Wireless sensor integrated in the valve is designed to monitor tire pressure and temperature
• Sensor with battery life up to 6 years / 100,000 km
• The device is intended for vehicles with 12V power network
• Easy installation

TPMS (Tire Pressure Monitoring System ) will help you avoid accidents caused by tire failure, reduce fuel consumption and extend tire life. TPMS is designed to help the driver to monitor the condition of the tires, but the full responsibility to respond to a real tire condition and inflation pressure is up to driver. TPMS is a wireless RF product (radio frequency), thats why the device does not receive signals from sensors for external disturbances, low voltage batteries in sensors or if sensor damaged. Device should be installed according to instructions by a professional technician.


Technical Parameters:

1 Sensors:

• Operating frequency : 433.92 MHz
• Operating voltage : 2.0 - 3.6 V
• Operating temperature : - 40C to +125 C
• Humidity : 0 % to 100 %
• Temperature deviation : + / - 1C
• Pressure deviation : + / - 0.1 Bar
• Sensor life : 6 years / 100.000 km

2 Control unit:

• Operating frequency : 433.92MHz
• Working voltage: 12V + / - 3V
• Operating temperature : - 20C to +85 C

3 Air pressure units:

• 1 bar = 14.5 psi = 100 kPa = 1.2 kgf/cm2

Package contains:

• valves with integrated sensors 4pcs, control unit, wireless button , speaker, cables , manual, warranty card
