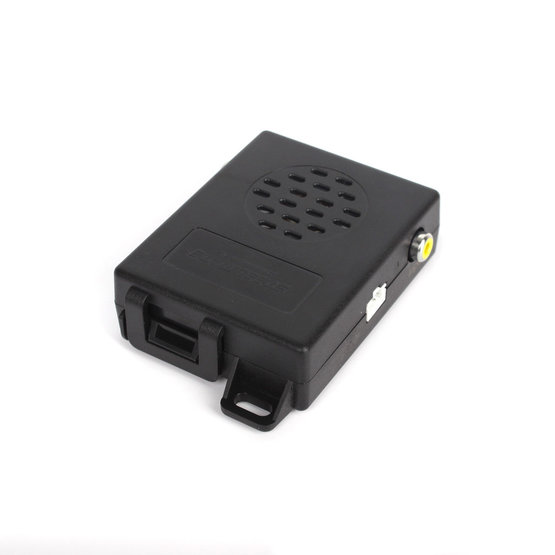

PTSV01 Video module for parking sensors
|
PTSV01

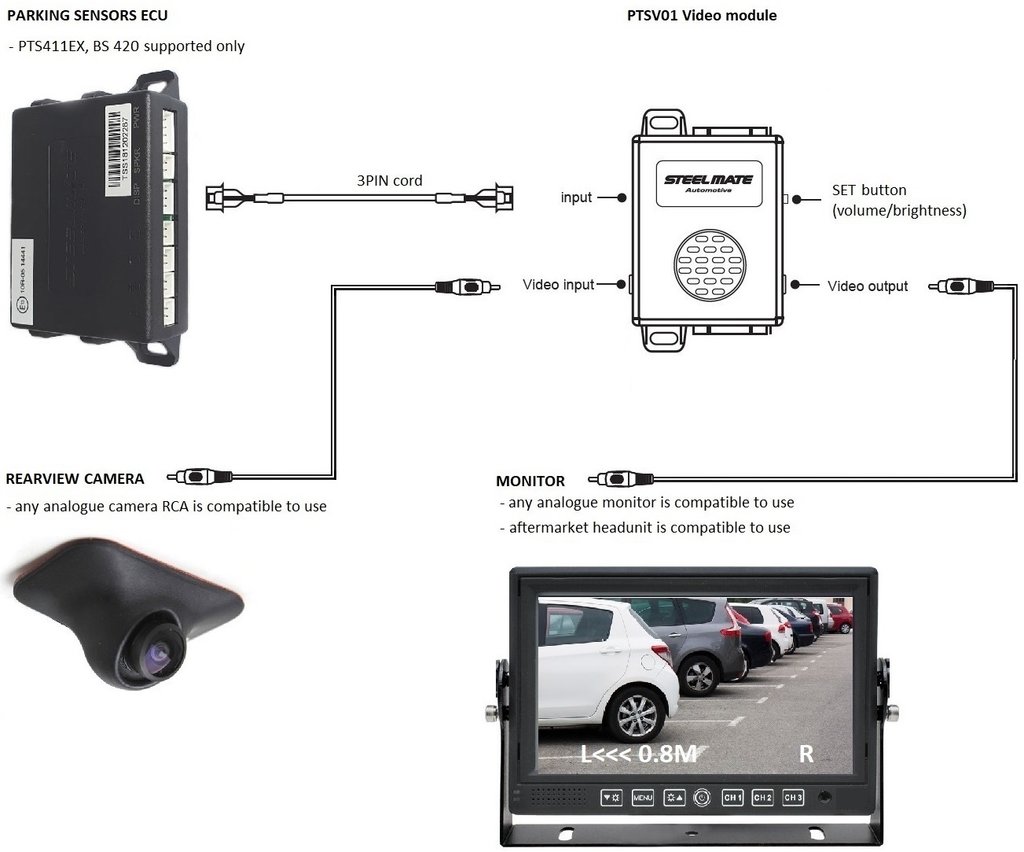

Do you want to have the distance data from the parking assistant and the parking camera image displayed together on 1 monitor? PTSV01 video module connects all 3 devices! If a camera, monitor and compatible parking assistant are already installed, just add and connect the module.
The module combines the accoustic signal of parking assistant, only Steelmate PTS411EX / Keetec BS 420 rear parking sensors with the image of the video camera into the complex information. Then while reversing, the driver is watching the camera image and perceives the distance to the obstacle acoustically and numerically as well.
NOTES
- cameras and monitors with AHD signal are not supported
- both PAL and NTSC standards are supported (camera and monitor must have the same)
- compatible parking sensors:
- PTS411EX
- BS 420
- if a camera / monitor with 4pin M12 plugs is used, the necessary reductions must be added (not included in the package):
- RCA-M12 F
- RCA-M12 M
- AV ADAP MM
- the module is powered by the ECU of parking assistant
- in combination with PTS411EX, the module can also be installed on vehicles with 24V vehicles
The package contains:
- module 1x
- AV cable 1x
- 3PIN cord for sensors ECU connection 1x
Parameters
| Accessories | Video module |
|---|---|
| Manufacturer | Steelmate |
| Weight | 0.286 kg |
