Rearview mirror with driving recorder, Kia RM LCD BDVR KIA

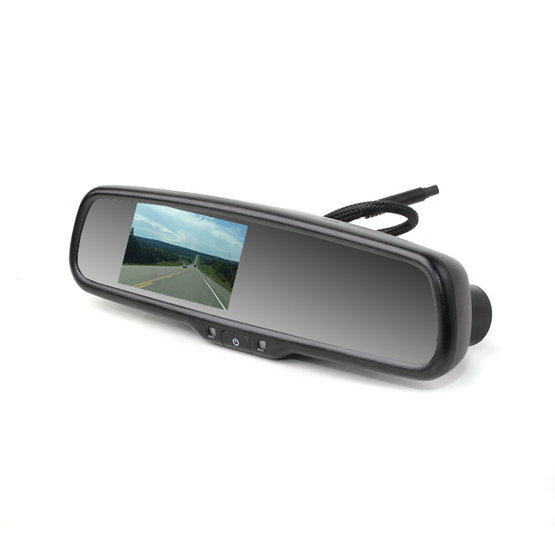

Rearview mirror with driving recorder and monitor 4.3" integrated, for Kia, Hyundai, Mitsubishi, Mazda, Ford cars, is used to record the route while driving and to display the parking camera image. The rearview mirror is installed instead of the car´s original central mirror.
Discontinued
Rearview mirror with driving recorder and monitor 4.3" integrated, for Kia, Hyundai, Mitsubishi, Mazda, Ford cars, is used to record the route while driving and to display the parking camera image. The rearview mirror is installed instead of the car´s original central mirror.
The built-in camera is located in the front of the mirror to monitor the area in front of the car. Recording video and audio from this camera is stored on the SD card. The video is recorded in a closed loop for each file with the date and time taken. Camera contains gravity sensor (G-sensor). An additional camera or other video signal can be connected to the device, from DVD player for example.
Built-in monitor 4.3"/16:9 helps you set the camera's parameters and features, and also allows you to play back saved recordings. Monitor can also display parking camera picture, or video from DVD player or DVB-T tuner, if connected.
Mirror with a high-quality glass surface replaces the original mirror in the vehicle. Using a specific holder for a particular car model, it is attached to the original glued socket to the windscreen of the vehicle.
After the reverse gear is shifted, the mirror screen will display the real image behind the car, if the front camera is displayed previously, it will be interrupted during the car´s reversing period.
Technical parameters:
- TFT LCD 4.3" (16: 9 format)
- built-in camera, Ambarella A7 CPU, 2MPx CMOS sensor 1/3''
- option to aim the camera lens (knob fixation)
- view angle: 120°
- video resolution: Full HD 1080p
- display brightness adjusted automatically
- menu language: multi language menu supported
- SD card: support up to 32GB (not included)
- TV standard: PAL / NTSC (automatic)
- 1x video input for additional camera / parking camera (RCA / CINCH connector)
- rear view picture – activated automatically after the signal occurs
- operating temperature: -20 to + 70 °C
- power consumption: 8W
- display resolution: 480 (H) x 272 (H)
- supply voltage: 12V
- dimensions: 267 x 81 x 54mm (W x H x D)
Supported cars:
Note: We recommend that you check the compatibility with your car's holder type before ordering.
- KIA Ceed III
- KIA Rio III. (9/11-)
- KIA Sportage III. [SL] (8/10-15)
- KIA Picanto III. [TA] (5/11-)
- KIA Venga [YN] (11/09-)
- KIA Sorento II. (11/09-15)
- KIA Carens IV. [RP] (3/13-)
- CADILLAC
- CITROEN C-Crosser
- DODGE
- FORD Fiesta
- FORD Focus
- FORD Mondeo (00-07)
- FORD Transit (07-)
- FORD Transit Connect (9/13-)
- FORD Transit Custom [FCC] (11/12-)
- FORD B-max [JK8] (6/12-)
- FORD C-MAX [DXA](12/10-)
- FORD Kuga I. [DM2] (11-2/13)
- FORD Kuga II. [DM2] (3/13-)
- FORD Tourneo Connect (9/13-)
- FORD Tourneo Custom [FAC] (11/12-)
- CHEVROLET Orlando (10/10-) [KL1Y][KL1YN]
- CHEVROLET Cruze (09-)
- CHRYSLER
- HONDA CR-V III. (06-12)
- HYUNDAI i20 II. (15-)
- HYUNDAI i30 II. (2/12-)
- HYUNDAI ix20
- HYUNDAI ix35
- HYUNDAI ix55 (11/08-)
- JEEP
- ISUZU D-Max (12-)
- PEUGEOT 4007
- MAZDA 5 I. [CR19] (5/05-8/10)
- MAZDA 5 II. [CW] (9/10-)
- MAZDA 6 I. [GG][GY](02-1/08)
- MAZDA 6 II. [GH] (2/08-12/12)
- MITSUBISHI L200 (03-)(06-)
- MITSUBISHI Outlander I. (03-07)
- MITSUBISHI Outlander II. (07-12)
- MITSUBISHI Outlander III. (13-)
- MITSUBISHI ASX (10-)
- MITSUBISHI Eclipse (96-)
- MITSUBISHI Pajero III. (00-06)
- MITSUBISHI Grandis (04-)
- MITSUBISHI Lancer (07-)
- NISSAN Qashqai II. [J11] (2/14-)
- NISSAN Navara (05-)
- NISSAN Pathfinder (05-)
- SUBARU Forester IV. (13-)
- SUBARU XV [G4] (11-)
- SUZUKI S-cross (13-)
- SUZUKI Vitara III. [LY] (4/15-)
- ŠKODA Citigo (10/11-)
- TOYOTA RAV4
- TOYOTA Yaris (99-06)
- TOYOTA Land Cruiser 120 (02-)
Note: For cars without rain sensor only!
Parameters
Model of the car | Aspen, Town&Country, Patriot, Grandis, Venga, Grand Caravan, Transit, Carevan, Vision, Renegade, Lancer, Sorento, Challenger, Transit Connect, Cirrus, Voyager, Sahara, Carens, Charger, Transit Custom, Concorde, Wrangler, Qashqai, Intrepid, B-max, Convertible, CR-V, Wrangler Unlimited, Navara, CTS, Journey, C-max |
---|---|
For vehicles | Passanger |
Brand of the car | Nissan, Honda, Cadillac, Hyundai, Isuzu, Dodge, Citroen, Mitsubishi, Suzuki, Mazda, Chevrolet, Jeep, Toyota, Peugeot, Škoda, Chrysler, Ford, Kia, Subaru |
For cars | passanger, commercial |
Signal | analog |
Plugs | CVBS-RCA |
Diagonal | 4,3" |
Use | OEM |
Weight | 1.307 kg |
