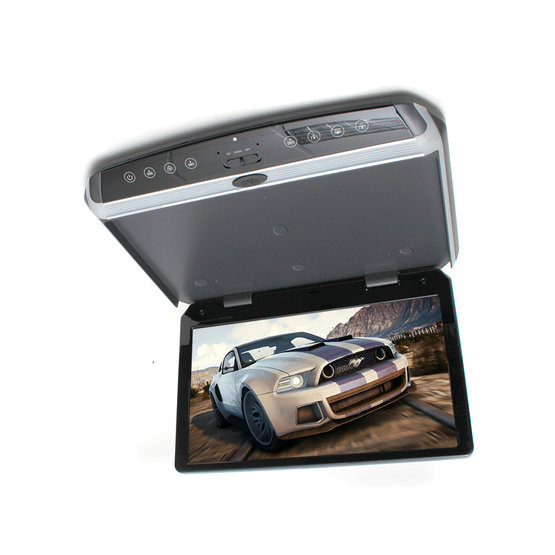

MR1560G monitor 15.6“ roof mount USB/HDMI

| MR1560G

Roof mount multimedia screen 15.6´´ of slim design (30mm) for comfortable movie watching, with HDMI / USB / RCA inputs with an IR / FM transmitter, allows you to connect the headphones or play audio in your car's speakers wirelessly. It is designed for passengers.


Discontinued

Roof mount multimedia screen 15.6´´ of slim design (30mm) for comfortable movie watching, with HDMI / USB / RCA inputs with an IR / FM transmitter, allows you to connect the headphones or play audio in your car's speakers wirelessly. It is designed for passengers.

Technical parameters:

  • ultra SLIM design (30mm)
  • 15.6" LCD screen (39.6cm)
  • FullHD Resolution 1920 x 1080
  • 16.7 mil. color, brightness: 400 cd/m2
  • inputs:
    • 1x HDMI / 1x USB 5V-1A (rear on cable)
    • 1x Video Input (RCA) and 1x Audio Input (RCA)
  • 1x video output (RCA) and 1x audio output (RCA)
  • dual IR / FM transmiter
  • atmosphere light - backlight (turn off)
  • LED backlight - door control (open / close)
  • touch keys, blue backlight
  • remote control
  • for vehicles with 12V voltage (11V-14V)
  • Operating temperature -10 °C ~ 70 °C
  • current consumption 0,05A / 1,5A (sleep / in operation)
  • PAL / NTSC auto mode
  • dimensions: 410x320x30mm (shut)
  •                     410x320x260mm (90° open)
  • weight: 2.9 kg
  • 2.25m long power cord
  • Color: metal gray

Compatible files:

  • jpeg, png, bmp, gif, tiff, txt
  • mp3, wma, wav, m4a, aac
  • mov, asf, wmv, flv, data, mpg, mpeg, vob, mp4, mkv, divx, avi, also others (maximum 1080p resolution)

Package Contents:

monitor screen, remote control, user manual, power cabling, cabling for ceiling and door connection, screws and screw caps in metal gray color.

Parameters

Weight 3.254 kg
