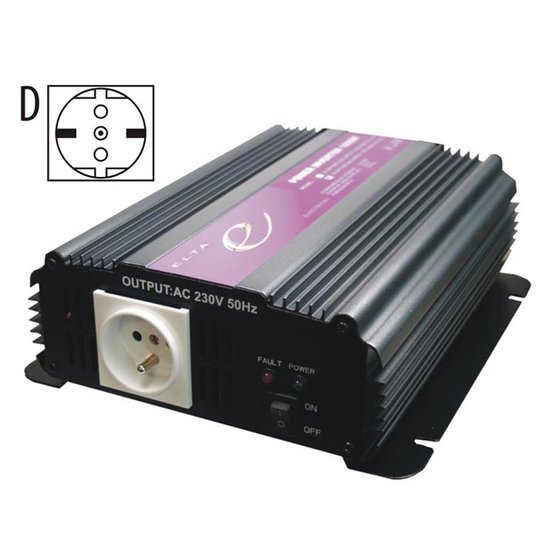

SP1000-12V

ELTA | SP1000-12V

Power inverter DC 12V to AC 230V, 1000W

Discontinued

Useful Application:

Power supply for notebook, computers, radios, small TVs, VCRs,Lamps, fax,...etc.

Specification:

  • Input voltage range : 10-15V DC
  • Input full load current :100A
  • Standby input current : less 0,4A
  • Output voltage: AC : 230V +/- 5%,modify sinewave
  • Output frequency : 50Hz
  • Continue output power : 1000W
  • Peak output power : 2400W
  • Efficiency : 85%-90%
  • Battery low shutdown : 10+/- 0,5V DC
  • Battery low pre-alarm : 10,5 +/- 0,5V DC
  • Thermal protect : 60 +/- 5 st C
  • Output short protect : yes
  • Overload protect : yes
  • Battery ex.12V / 24V - yes
  • Battery polarity protect - yes (fuse)
  • Fuse : 20A - 9 pcs
  • Dimension: 300x198x80mm
  • Weight : 3,1 kg

Parameters

Weight 2.655 kg
