Steelmate parking assistant rear and front PTS810V7

System Description:

• acoustic, voice and visual alarm
• sensors are mounted to the rear and front bumper
• automatic detection of damage to sensors (selftest)
• if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
• Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
• sensitivity setting, in 2 levels
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers 0°, 4°, 10° in the package
• sensor core diameter 14 mm
• installation hole 18.8 mm
• sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
• supply voltage: 12V DC
• working power: <2.5W
• cover range (front / rear): from 0.3 to 1 m / 0.3 to 1.5 meters

Contents:

• parking sensors 8 pieces

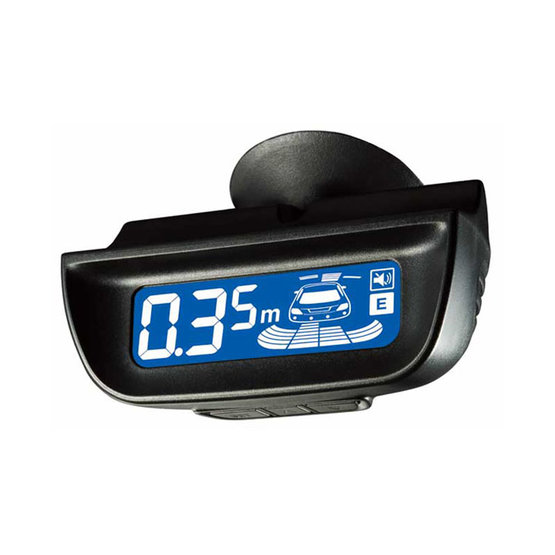

• display 1x
• control unit 1x
• cabling
• drill
• instruction manual
• warranty card

Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible!
