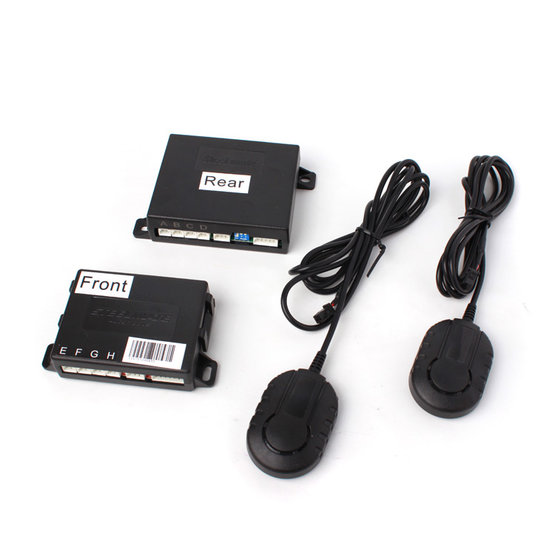

Steelmate PTS810EX parking assistant

| PTS810EX

Front and rear parking assistance system STEELMATE with 8 sensors, 2 buzzers with volume and tone adjustment.

PTS810EX parking assistant could be supplied with theese sensor types: white, silver, shiny, metal, INT ( inner black 25mm), BTI white (inner white 16mm), BTI silver (inner silver 16mm), BTI (inner black 16mm).


Front and rear Park Assist system STEELMATE with 8 sensors, 2 buzzers with volume and tone adjustment. New control units allow to set the sensitivity of sensors, and also to set off delay of front sensors in two levels.

Technical parameters:

  • acoustic signalisation
  • buzzers with the switches allow to set the volume and tone
  • sensors are mounted in the front and back bumper
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • sensors sensitivity adjustable
  • off delay of the front sensors after releasing the brake pedal (8s or 20s)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensor diameter 18,5mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)
  • fast obstacle detection
  • automatic detection of damaged sensor
  • supply voltage: 12V DC
  • working power: <2.5 W
  • display range (front / rear): 0,3 ~ 1,0m / 0,3 - 1,5m


  • 8pcs of parking sensor
  • buzzer 2x
  • control unit 2x
  • wiring
  • drill
  • manual
  • warranty card

Note: The control unit contains a 3 PIN connector to connect the display, old displays with 8 PIN connector is not compatible!



Display Without display
Manufacturer Steelmate
Sensors colour black matt
Power Suply 12VDC
Sensor type Basic
Weight 1.515 kg
