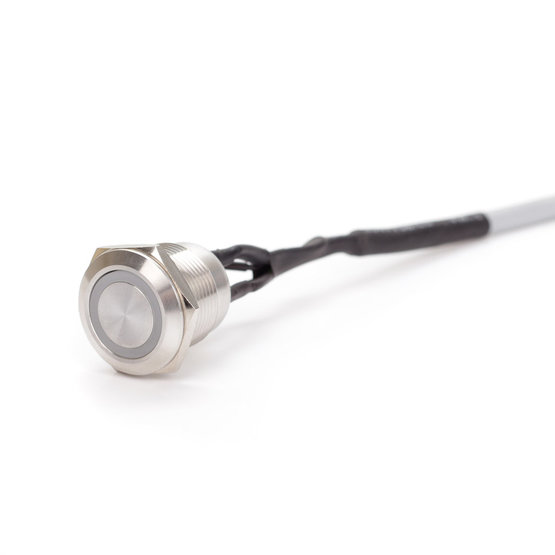

SW IMP Pulse switch with LED backlight, green, 19mm
|
SW IMP
Pulse switch, green backlight, with cable and connector, 19mm. The package includes a 1.5m cable with a 4-pin connector
Pulse switch, green backlight, with cable and connector, 19mm. The package includes a 1.5m cable with a 4-pin connector
| The switch closes in the temporary position | - during pressing |
| The switch turns off | - when released |
| contact configuration | SPST-NO |
| Contact rating AC @R | 0,5A / 220V AC |
| Contact rating DC @R | 2A / 36V DC |
| IP rating | IP65 |
| Switching method (indicates the current position in parentheses.) | vypnuté (zapnuté) |
| LED lighting | LED 24V AC/DC |
| Backlight color | green |
| Connectors | 2,8 x 0,5 mm |
| Operating temperature | -25...55°C |
| Electrical life | 200 000 cyklov |
| Max. transient resistance: | 50 mΩ |
| Operating force | 4N |
| Mechanical resistance | 1 000 000 cyklov |
| Mounting hole diameter | Ø19 mm |
| Body material | stainless steel |
| Test voltage | 2 kV |
| Contact material | silver alloy |
| Min. insulation resistance | 1000 MΩ |
| Number of stable positions | 1 |
Parameters
| Weight | 0.05 kg |
|---|
