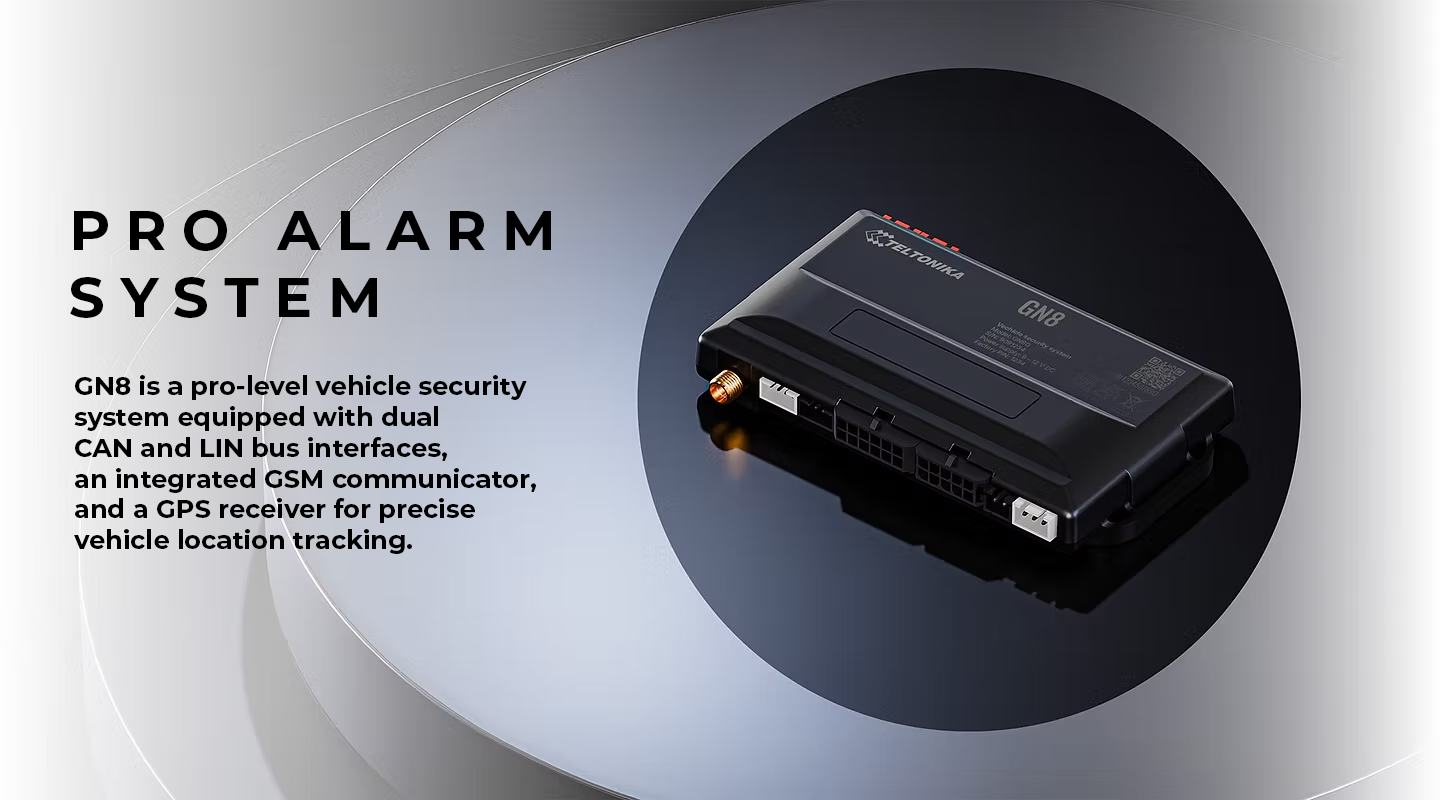

Teltonika GN8000600401 GSM/GPS Car alarm with siren

Thanks to its integrated database of supported vehicles, GN8 is compatible with a wide range of vehicle models. The dual CAN BUS and LIN interfaces provide extensive integration options with the vehicle's electronics.

GN8 combines conventional security functions with modern connectivity. In addition to shock and tilt detection, engine immobilization, and OEM control, it also offers GPS positioning, GSM communication, remote control via a mobile app, and online event monitoring.

Key Benefits

• Dual CAN BUS supporting more than 800 vehicle models
• Dual LIN interface for compatible vehicles
• Integrated GSM communicator with 2G/4G support
• Integrated GPS/GNSS receiver supporting GPS, GLONASS, and GALILEO
• GPS vehicle positioning and route tracking
• Teltonika One mobile app for vehicle control and monitoring
• Remote vehicle locking and unlocking
• Remote engine immobilization and disarming
• Integrated shock sensor with adjustable sensitivity
• Integrated tilt sensor for detecting vehicle lifting, towing, or attempted theft
• OEM remote control for system activation and deactivation
• Engine immobilization using an external 30 A relay
• Expandable with the D-JAM2 GSM Anti-Jamming sensor
• Protection of doors, hood, and trunk
• Ignition and engine start detection
• Visual and audible alerts
• Silent system arming option
• Automatic system re-arming
• Service / Valet mode
• Emergency disarming using a PIN code
• Voice menu for status checking, remote control, and configuration
• SMS, voice, and GSM data functions
• Push notifications, SMS, and voice alerts
• Event logging in the mobile app
• Configuration and firmware updates via Micro-USB

Comprehensive Protection and Connectivity in One System

GN8 combines security functions with modern communication technologies. The dual CAN BUS and LIN interfaces enable communication with the vehicle's electronics and support functions such as central locking, comfort functions, engine status detection, and immobilization.

The integrated GSM communicator enables communication via SMS, voice calls, and mobile data. The system can notify the user about events while also enabling remote vehicle control.

The GNSS receiver supporting GPS, GLONASS, and GALILEO provides vehicle positioning and enables tracking of its current location and routes. In the event of GPS signal loss, LBS positioning via the mobile network is also available.

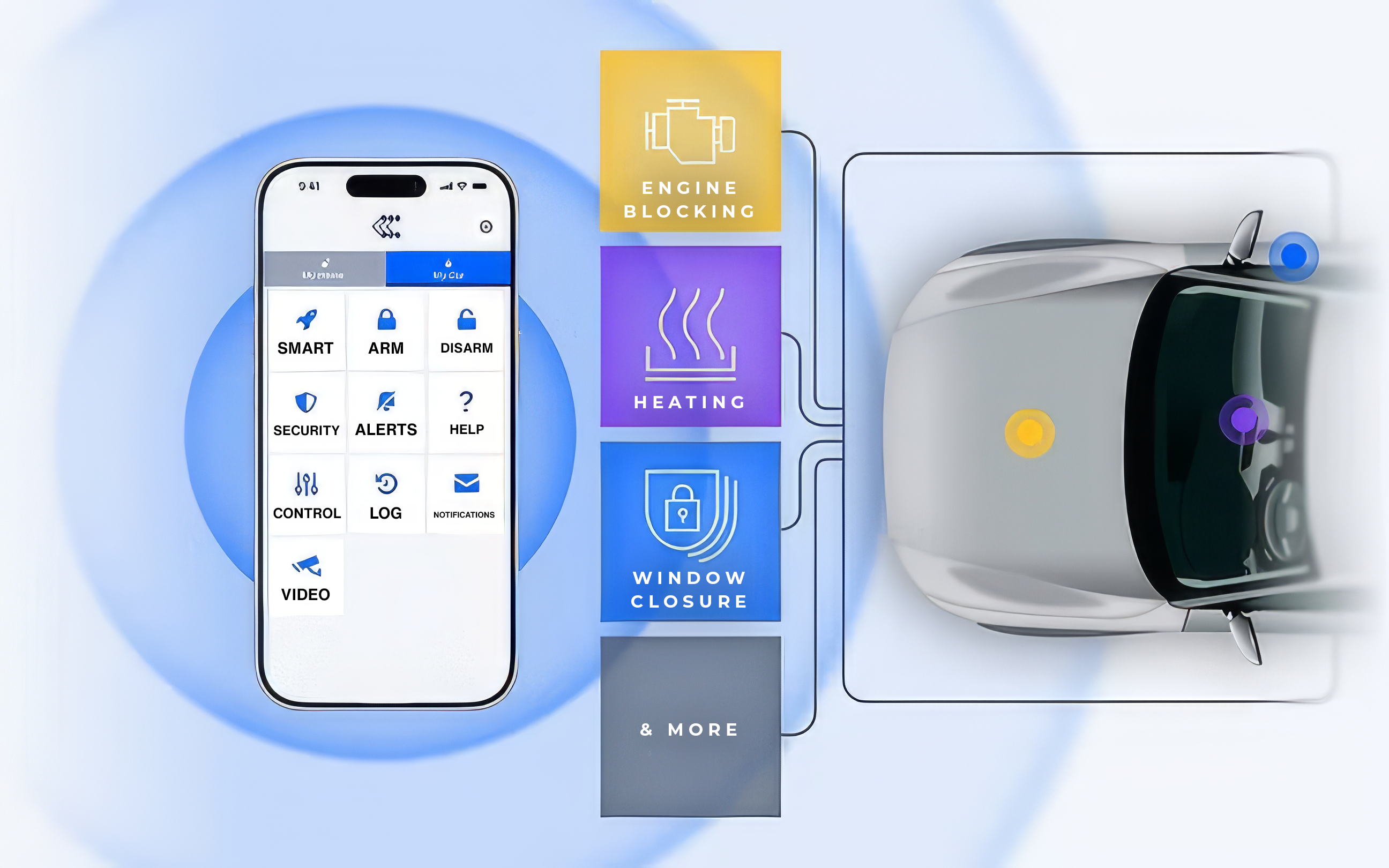

Vehicle Control via Mobile App

GN8 allows the vehicle to be controlled and monitored through Teltonika One. Users can remotely activate or deactivate the security system, monitor the vehicle's status and location, and access other supported functions.

The app allows, for example:

• arming and disarming the alarm
• remote engine immobilization and disarming
• Panic function with silent or audible alert
• displaying GPS location and travelled routes
• status and fault monitoring
• viewing event history
• receiving Push, SMS, and voice notifications

GN8 gives users control over vehicle security and status directly from their mobile phone.

Advanced Anti-Theft Protection

GN8 provides multi-layered vehicle protection. Integrated shock and tilt sensors can respond to attempted break-ins, lifting, towing, or vehicle manipulation.

The system also supports perimeter protection of the doors, hood, and trunk, as well as ignition and engine start detection.

To enhance protection against communication interference, GN8 features 2.4 GHz communication jamming detection. GSM Anti-Jamming protection can be expanded using the optional D-JAM2 sensor.

Interior Protection

Ultrasonic interior sensors monitor movement inside the vehicle. Combined with the integrated shock and tilt sensors, they provide an additional level of protection.

Remote Control and Monitoring

In addition to the OEM remote control, GN8 can also be operated via GSM communication and the mobile app. The system supports SMS commands, voice control, and mobile data.

The integrated voice menu enables system status checking, remote control, and configuration of selected functions.

Configuration and Updates

System configuration is performed via the Micro-USB interface. GN8 allows security profiles to be created and adjusted according to the specific vehicle and installation requirements.

Thanks to its wide compatibility with various vehicle models, the system can be adapted to the specific vehicle configuration and use functions available through CAN BUS and LIN communication.

Package Contents

• 1× GN8 control unit

• 1× external immobilization relay

• 1× hood contact

• 1× LED button

• 1× siren
