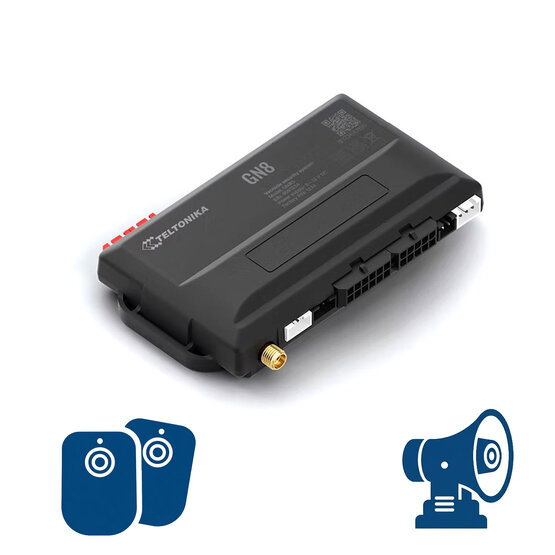

Teltonika GN8000600601 GSM/GPS Car Alarm with authorization tags

Thanks to its integrated database of supported vehicles, GN8 is compatible with a wide range of vehicle models. The dual CAN BUS and LIN interfaces provide extensive integration options with the vehicle's electronics.

GN8 combines conventional security functions with modern connectivity. In addition to shock and tilt detection, engine immobilization, Anti-Hijack protection, and OEM control, it also offers GPS localization, GSM communication, remote control via a mobile application, and online event monitoring.

Main Advantages

• Dual CAN BUS with support for more than 800 vehicle models
• Dual LIN interface for compatible vehicles
• Integrated GSM communicator with 2G/4G support
• Integrated GPS/GNSS receiver supporting GPS, GLONASS, and GALILEO
• GPS vehicle localization and route tracking
• Teltonika One mobile application for vehicle control and monitoring
• Remote vehicle locking and unlocking
• Remote engine immobilization and disarming
• Integrated shock sensor with adjustable sensitivity
• Integrated tilt sensor for detecting lifting, towing, or attempted vehicle theft
• OEM remote control for system activation and deactivation
• Engine immobilization using an external 30 A relay
• Anti-Hijack / Anti-CarJack function
• 2.4 GHz communication interference detection
• Option to add a D-JAM2 GSM Anti-Jamming sensor
• Door, hood, and trunk protection
• Ignition and engine start detection
• Visual and audible signaling
• Option for silent system activation
• Automatic system re-arm
• Service / Valet mode
• Emergency disarming using a PIN code
• Voice menu for status checking, remote control, and configuration
• SMS, voice, and GSM data functions
• Push notifications, SMS, and voice alerts
• Event logging in the mobile application
• Firmware configuration and updates via Micro-USB

Comprehensive Protection and Connectivity in One System

GN8 combines security functions with modern communication technologies. The dual CAN BUS and LIN interfaces enable communication with the vehicle's electronics and support functions such as central locking, comfort functions, engine status detection, and immobilization.

The integrated GSM communicator enables communication via SMS, voice calls, and mobile data. The system can therefore notify the user about events while also enabling remote vehicle control.

The GNSS receiver supporting GPS, GLONASS, and GALILEO provides vehicle localization and allows the user to track its current position and routes. In the event of GPS signal loss, LBS localization via the mobile network is also available.

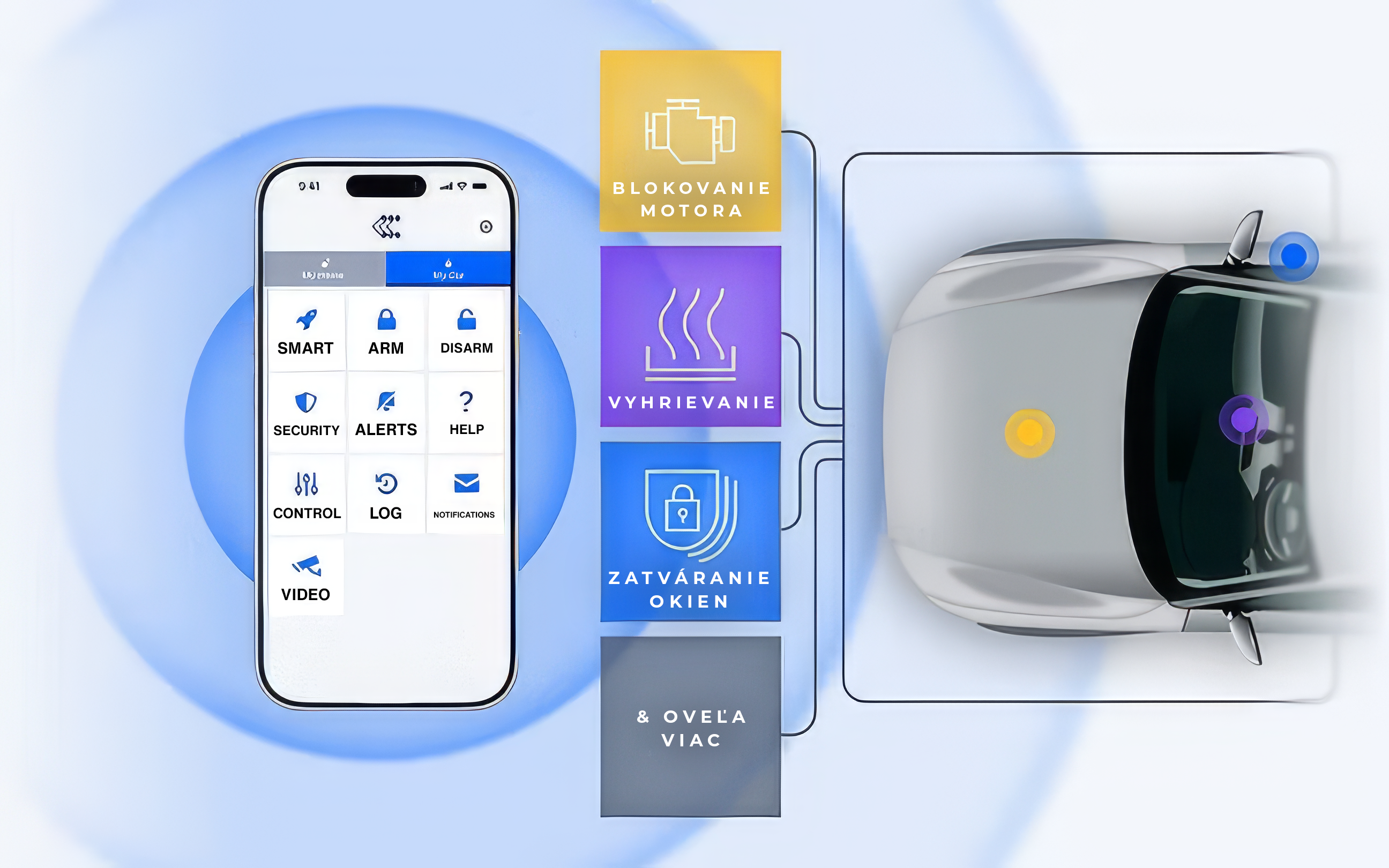

Vehicle Control via Mobile Application

GN8 allows the vehicle to be controlled and monitored through Teltonika One. The user can remotely activate or deactivate the security system, monitor the vehicle's status and location, and perform other supported functions.

The application allows, for example:

• Alarm activation and deactivation
• Remote engine immobilization and disarming
• Panic function with silent or audible signaling
• Display of GPS location and traveled routes
• Status and fault monitoring
• Display of event history
• Receiving Push, SMS, and voice alerts

GN8 therefore provides direct control over vehicle security and status from a mobile phone.

Advanced Anti-Theft Protection

GN8 provides multi-layer vehicle protection. Integrated shock and tilt sensors can respond to attempted break-ins, lifting, towing, or vehicle manipulation.

The system also supports perimeter protection of the doors, hood, and trunk, ignition and engine start detection, engine immobilization, and Anti-Hijack / Anti-CarJack mode.

To increase protection against communication interference attempts, GN8 features 2.4 GHz communication interference detection. GSM Anti-Jamming protection can be expanded using the optional D-JAM2 sensor.

Driver Authorization

GN8 supports driver authorization using 2.4 GHz authorization tags. This function enables identification of an authorized driver and can be used as an additional layer of vehicle security.

Interior Protection

Ultrasonic interior sensors monitor movement inside the vehicle. Combined with the integrated shock and tilt sensors, they provide an additional level of protection.

Remote Control and Monitoring

In addition to the OEM remote control, GN8 can also be operated via GSM communication and the mobile application. The system supports SMS commands, voice control, and mobile data.

The integrated voice menu allows system status checks, remote control, and configuration of selected functions.

Configuration and Updates

The system is configured via the Micro-USB interface. GN8 allows security profiles to be created and adjusted according to the specific vehicle and installation requirements.

Thanks to its broad compatibility with various vehicle models, the system can be adapted to the specific vehicle configuration and use functions available through CAN BUS and LIN communication.

Mobile application

Package Contents

• 1× GN8 control unit
• 1× external immobilization relay
• 1× hood contact
• 1× LED button
• 1× siren
• 2× authorization tags
