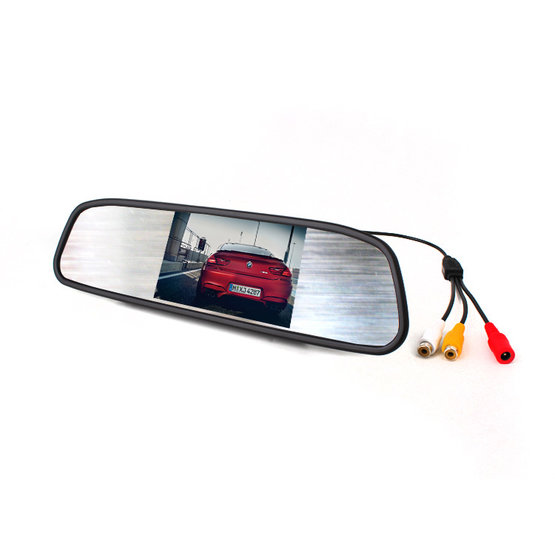

TFT MIRROR Monitor 4.3" 2ch RCA 12V
|
TFT MIRROR
Universal monitor 4.3" integrated in the central rearview mirror, includes two video inputs, 2 cameras can be connected. The mirror is installed onto the oem central rearview mirror by stretching the jaws on the TFT MIRROR and attaching it to the oem mirror.
Universal monitor 4.3" integrated in the central rearview mirror, includes two video inputs, 2 cameras can be connected. The mirror is installed onto the oem central rearview mirror by stretching the jaws on the TFT MIRROR and attaching it to the oem mirror.
Technical specifications:
- Screen size: 4,3'' (11 cm)
- Resolution: 480 x 234 RGB
- Power supply: 12V
- Dimensions: 28,5 cm x 7,5 cm x 2,2 cm (without holder/jaws)
- Standard: PAL / NTSC
- Power consumption: around 1.3W
- Temperature range: -20 °C to 70 °C
- Storage temperature: -30 °C to 80 °C.
- Automatic activation after receiving AV signals
- Image settings (brightness, contrast, language, etc.)
- without guide lines, without speakers
Parameters
| For cars | passenger |
|---|---|
| Diagonal | 4,3" |
| Signal | analog |
| Connectors | CVBS-RCA |
| Use | UNI |
| Weight | 0.397 kg |
