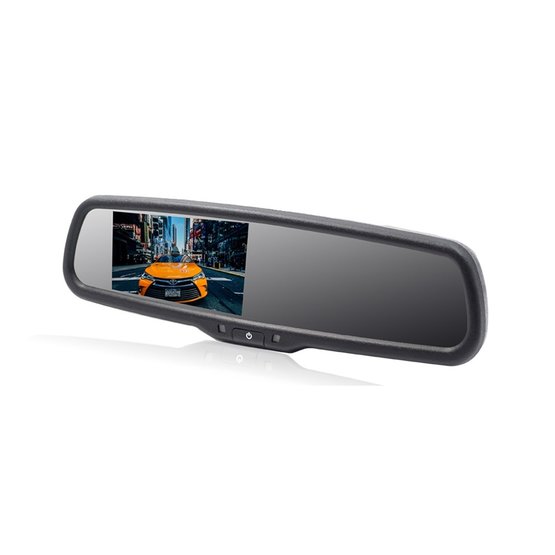

TFT MIRROR4.3 Monitor integrated in the mirror 2-channel
|
TFT MIRROR4.3

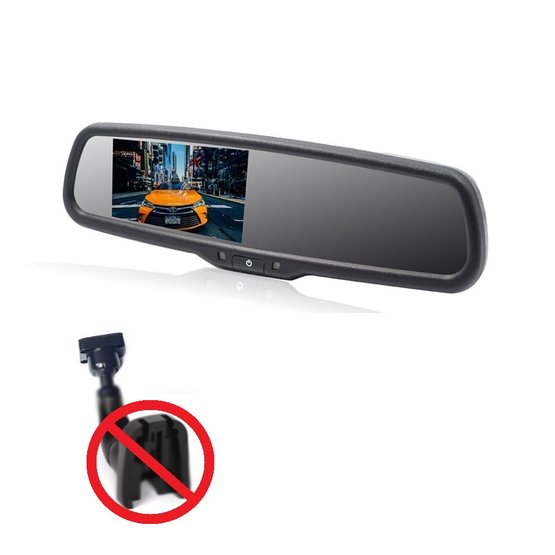

Rearview mirror with monitor 4.3" integrated, is installed in the place of the original mirror in the vehicle. It is used to display the image from the parking camera, while reversing the car, the real image behind the vehicle is displayed for safe reversing and parking. To fix the mirror on the original metal base on windshield, it is NECESSARY TO PURCHASE A HOLDER for the specific car model, in which the mirror is to be installed (e.g. HOLDER1, HOLDER2).The monitor contains 2x video input for connecting 2 cameras.
Rearview mirror with monitor 4.3" integrated, is installed in the place of the original mirror in the vehicle. It is used to display the image from the parking camera, while reversing the car, the real image behind the vehicle is displayed for safe reversing and parking. To fix the mirror on the original metal base on windshield, it is NECESSARY TO PURCHASE A HOLDER for the specific car model, in which the mirror is to be installed (e.g. HOLDER1, HOLDER2).The monitor contains 2x video input for connecting 2 cameras.
Features
- display:
- LCD type
- diagonal: 4.3"
- ratio: 16:9
- resolution: 480 x 232
- TV system: PAL/NTSC
- video input: 2x
- audio input: no
- indicator LED: green lights up if the monitor is powered
- trigger for video input activation (for the reversing camera): no
- the power supply is connected to the ignition, automatic show up channel no. 2 after the signal is applied
- built-in speakers: no
- settings:
- manual brightness adjustment (for CH2)
- interior light sensor - automatic brightness adjustment
- manual monitor shutdown (for CH1)
- power supply: 12 V / 4 W
- dimensions: 268 x 83 x 35 mm
Parameters
| Diagonal | 4,3" |
|---|---|
| Signal | analog |
| Use | OEM |
| Connectors | CVBS-RCA |
| For cars | passenger |
| Weight | 0.54 kg |
Related products
HOLDER1 Mirror holder for Ford, PSA
Mirror holder for tft mirror4.3, designed for Fiat, Peugeot, Citroen, Iveco, Mitsubishi cars without rain sensor.
HOLDER2 Mirror holder for Jumper, Boxer, Ducato, Daily
Mirror holder for tft mirror4.3, designed for Jumper, Boxer, Ducato, Daily,... cars without rain sensor.
