Discontinued

Universal parking camera, guide lines on-off BC UNI-24

| BC UNI-24

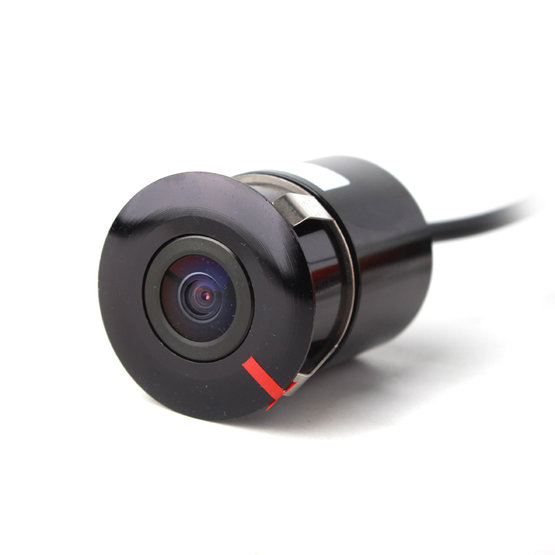

Rearview camera universal into 24mm hole, with guide lines option to turn ON/OFF, view angle of 170°.


Discontinued Prejsť na nový model

Rearview camera universal into 24mm hole, with guide lines option to turn ON/OFF, view angle of 170°.


Technical parameters:

  • sensor: PC3089 1/3"
  • without guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio: > 48dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • image orientation: mirror type
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • 24 x 30 x  36 mm (H x W x D)

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Weight 0.382 kg
