BC ADI-01 Rearview camera in handle Audi
|
BC ADI-01

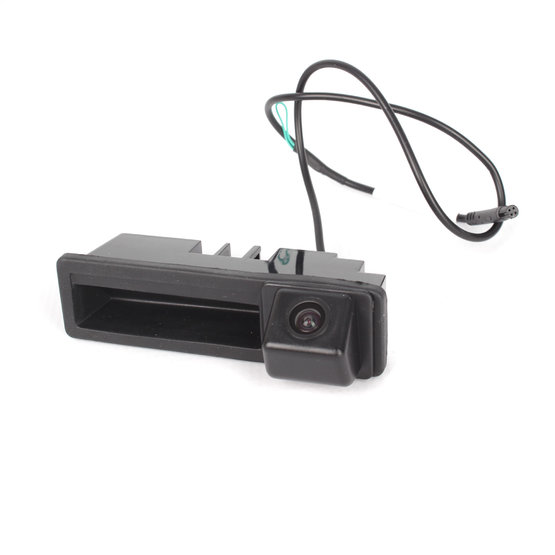

OEM colour parking camera for installation into the handle of the 5th door.
OEM colour parking camera for installation into the handle of the 5th door.
- AUDI A3 [8P] (5/2003-8/2012)
- AUDI A4 [B8] (2008->)
- AUDI A5 (2012-2014)
- AUDI A6 (2008-2011)
- AUDI Q7 (2007->)
Technical Parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 110 x 31 mm
- mounting depth 30,5 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Model of the car | Q7, A3, A4, A5, A6 |
|---|---|
| Use | OEM |
| Brand of the car | Audi |
| For cars | passanger |
| Signal | analog |
| Plugs | CVBS-RCA |
| Weight | 0.301 kg |
