BC BRAKE Camera in brakelight universal

| BC BRAKE

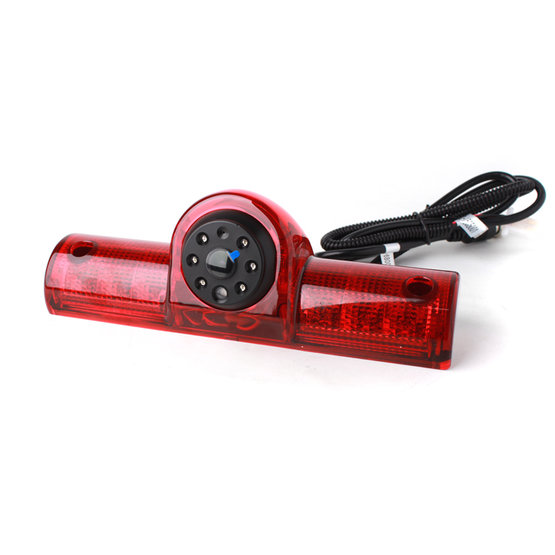

Rear view camera integrated in the central brake light installed above the rear hinged doors, with automatic IR LEDs,  for vans, universal use.


Discontinued

Rear view camera integrated in the central brake light installed above the rear hinged doors, with automatic IR LEDs,  for vans, universal use.

Technical parameters:

  • sensor: PC3089 1/3"
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • sensing angle: 170°
  • image display: mirror
  • microphone: yes
  • contains adhesive surface, rubber pad and fixing screws
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 7 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W
  • size:           198 x 50mm / holes pitch 165mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

For cars commercial
Signal analog
Plugs CVBS-RCA, M12
Use UNI
Weight 1.164 kg
