Discontinued

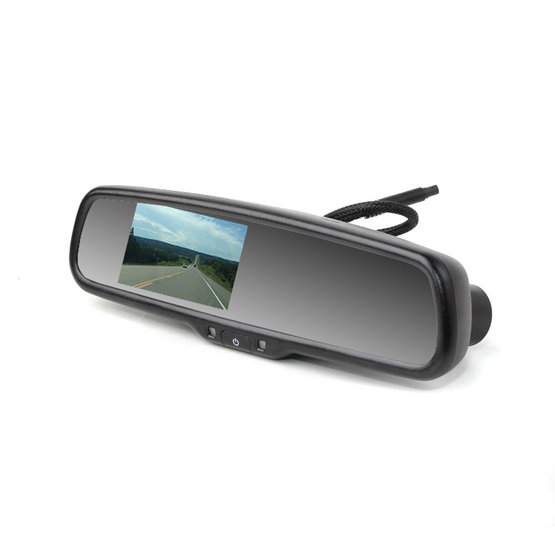

RM LCD BDVR VW2 Mirror with display, camera

| RM LCD BDVR VW2

Rearview mirror with driving recorder and monitor 4.3" integrated, for VW, Škoda cars, is used to record the route while driving and to display the parking camera image. The rearview mirror is installed instead of the car´s original central mirror.


Discontinued

Rearview mirror with driving recorder and monitor 4.3" integrated, for VW, Škoda cars, is used to record the route while driving and to display the parking camera image. The rearview mirror is installed instead of the car´s original central mirror.

Built-in camera is located in the front of the mirror to monitor the area in front of the car. Recording video and audio from this camera is stored on the SD card. The video is recorded in a closed loop for each file with the date and time taken. Camera contains gravity sensor (G-sensor). An additional camera or other video signal can be connected to the device, from DVD player for example.

Built-in monitor 4.3"/16:9 helps you set the camera's parameters and features, and also allows you to play back saved recordings. Monitor can also display parking camera picture, or video from DVD player or DVB-T tuner, if connected.

Mirror with a high-quality glass surface replaces the original mirror in the vehicle. Using a specific holder for a particular car model, it is attached to the original glued socket to the windscreen of the vehicle.

After the reverse gear is shifted, the mirror screen will display the real image behind the car, if the front camera is displayed previously, it will be interrupted during the car´s reversing period.

Technical parameters:

  • TFT LCD 4.3" (16: 9 format)
  • built-in camera, Ambarella A7 CPU, 2MPx CMOS sensor 1/3''
  • option to aim the camera lens (knob fixation)
  • view angle: 120°
  • video resolution: Full HD 1080p
  • display brightness adjusted automatically
  • menu language: multi language menu supported
  • SD card: support up to 32GB (not included)
  • TV standard: PAL / NTSC (automatic)
  • 1x video input for additional camera / parking camera (RCA / CINCH connector)
  • rear view picture – activated automatically after the signal occurs
  • operating temperature: -20 to + 70 °C
  • power consumption: 8W
  • display resolution: 480 (H) x 272 (H)
  • supply voltage: 12V
  • dimensions: 267 x 81 x 54mm (W x H x D)

Supported cars:
Note: We recommend that you check the compatibility with your car's holder type before ordering.

  • Porsche Cayenne I. (02-)
  • ŠKODA
  • ŠKODA Octavia II.
  • ŠKODA Superb II. (3/08-)
  • VW Touareg I. (02-)
  • VW Bora (05-)
  • VW Jetta III. (05-)
  • VW Touran (12/05-)
  • VW Tiguan (07-) *
  • VW Eos (05-)
  • VW Scirocco (08-) *
  • VW Golf V. (03-09)
  • VW Golf VI. (08-)
  • VW Passat B6 (05-10)
  • VW Passat B7 (10-)

Note: *For cars with rain sensor located in mirror base only!



Parameters

Model of the car Octavia II., Passat B7, Rapid, Roomster, Superb, Superb I., Superb II., Yeti, Cayenne I., , Golf V., Jetta III., Touareg I., Passat B6, Scirocco, Bora, Golf VI., Touran, Eos, Tiguan, Felicia, Fabia III., Fabia II., Fabia, Fabia I., Octavia, Octavia I., Octavia III.
Plugs CVBS-RCA
Brand of the car Porsche, VW, Škoda
Signal analog
Use OEM
Diagonal 4,3"
For cars passanger
Weight 1.239 kg
