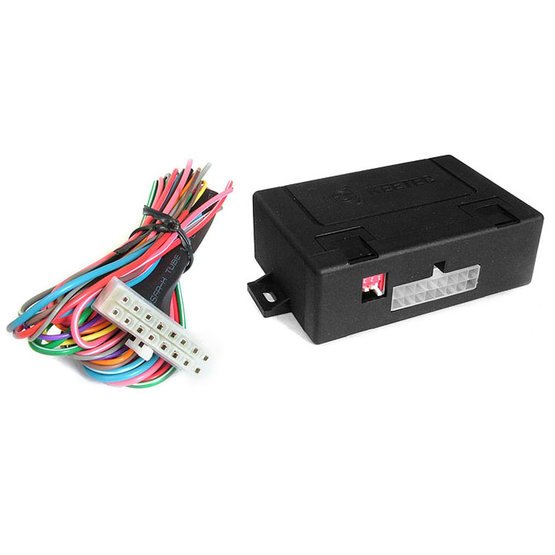

Rollup windows module M WIN

KEETEC M WIN is a comfort module for power windows control for vehicles with power supply 12V. The module can be used for closing the 4 power windows or comfort control (up, down) 2 power windows.

Description of system functions

• one-touch 4 power window rollup
• power window closing when the car is armed
• current protection for overload
• adjustable polarity
• auxilliary output of ignition /power supply of switches in windows closing after arming/

Module inputs:

• input for windows open
• input for windows closing
• door switches connection
• ignition input

Module outputs:

• 4x for power windows actuators connection
• power supply output /for power supply of switches in car/

Packing

• control unit, cabling
