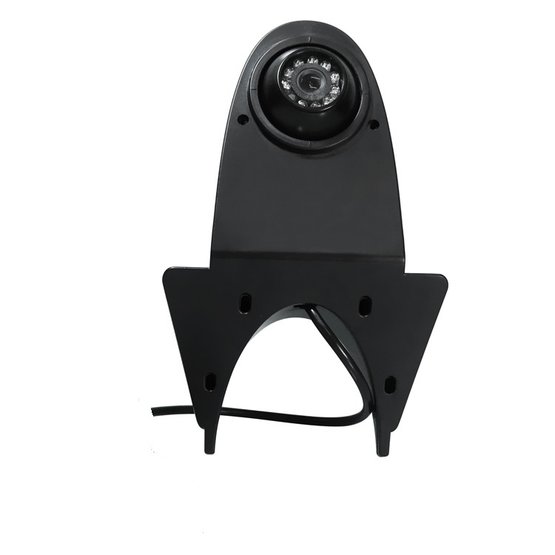

Parking camera for vans, BC UNI-03

Color rear view camera with automatic IR illumination, for vans, to install above the rear door. It is possible to control the space behind the car, even if the rear door is open (loading, unloading, etc.). Camera is not attached to the rear door.

Suitable for the car models: (universal mounting on the rear upper edge)

• MERCEDES Sprinter (W906) (2006->)
• VW Crafter (4/2006->)
• FIAT Ducato (6/2006-9/2011)
• CITROEN Jumper (2006->)
• PEUGEOT Boxer (2006->)
• others

Technical parameters:

• sensor chip: 1/3 "SONY Super HAD CCD
• automatic IR LEDs, if low surrounding light
• 10x IR LED, 10 meters lenght coverage
• mirror picture
• no parking lines
• water resistant: IP68
• TV System: NTSC
• focal length: 2.8mm
• viewing angle 120°
• resolution: 480 TVL
• effective pixels: 640 (H) * 480 (V)
• aperture of the lens F: 1.2
• minimum illumination: 0 Lux (IR ON at) 0.05 Lux
• video Output: 1 Vp-p, 75 Ohm
• BLC: Auto
• signal/noise: less than 48 db
• current consumption: 300 mA
• power supply: 12V/24V
• operation temperature: -20 °C to + 70 °C
• storage temperature: -40 °C to + 70 °C
• short power and signal cable ended with CINCH connector
• total measures: 20.5 x 13.5 x 6 cm

Package Contents: the camera body, lens, 1x gaskets for mounting the lens, screws, body camera gasket

Note: The camera is designed for monitors with RCA AV input and for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
