Vehicles

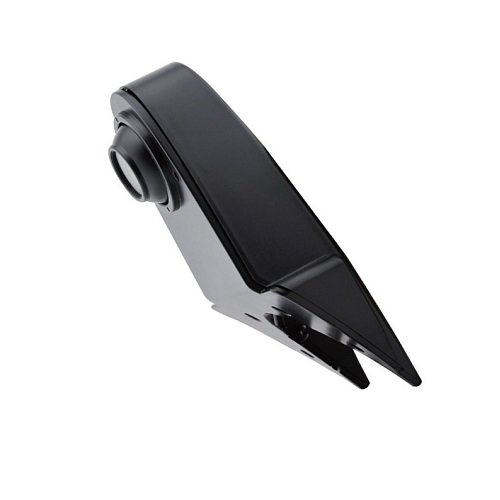

CAM2 Camera analog on top rear 4PIN auto IR
|
CAM2
Camera for vehicles analogue, with auto IR, to display on analogue or AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as rear on the top edge, the image orientation setting is performed on the monitor, e-mark.
Camera for vehicles analogue, with auto IR, to display on analogue or AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as rear on the top edge, the image orientation setting is performed on the monitor, e-mark.
Features
- Sharp CCD 1/4"
- 600TVL resolution
- automatic illumination, 10 x IR LED
- angle: sensing: 120°
- NTSC TV system
- water resistance: IP69K
- shock resistance min. 4G
- image orientation: mirror image
- possibility of tilting / rotating the camera during installation
- 0.3m cable terminated with a 4PIN M12 screw connector
- DC 12V power supply (powered from the monitor, it is designed also for 24V vehicles)
- microphone: No
- power consumption: <3W
- working temperature from -20 to +70 °C
- dimensions: 210 x 128 x 62 mm
- e-mark
Package contents: camera, screws, double-sided 3M tape
Note. The analog camera is designed for display on an analog or AHD monitor as well.
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Signal | analog |
| Connectors | M12 |
| Weight | 0.44 kg |
