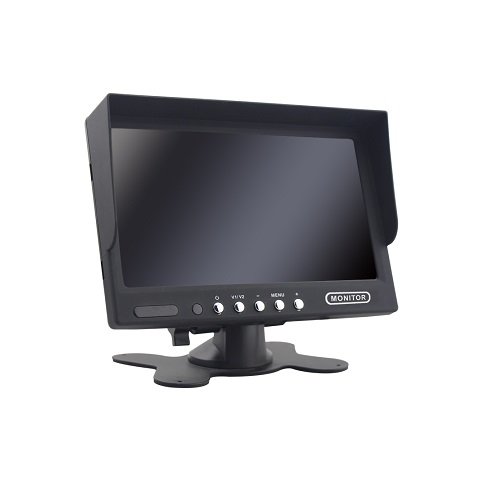

TFT7A2 Monitor 7" 2ch 4PIN 12/24V
|
TFT7A2
Monitor 7" for vehicles, supporting two cameras to connect, simultaneous viewing of only one camera, M12 4PIN screw connectors, 800x480 resolution, for vehicles with 12/24V on-board voltage, analogue cameras with M12 or RCA cinch plugs compatible, 180° flip image function, ideal to connect rearview and side camera, 1x M12/RCA reduction included.
Monitor 7" for vehicles, supporting two cameras to connect, simultaneous viewing of only one camera, M12 4PIN screw connectors, 800x480 resolution, for vehicles with 12/24V on-board voltage, analogue cameras with M12 or RCA cinch plugs compatible, 180° flip image function, ideal to connect rearview and side camera, 1x M12/RCA reduction included.
Features
- diagonal 7” TFT LCD 16:9
- 800 x 480 RGB resolution
- AV input 2x CVBS video input (RCA)
- trigger wire for parking camera
- image orientation adjustment (up, down)
- guidelines on/off Yes
- speaker Yes
- 500cd / m2 display backlight
- TV system PAL / NTSC
- shock resistance min. 4G
- DC power supply 12-24V
- working temperature from -20 to +70 °C
- dimensions 170x 115x 24mm (without shield and stand)
Package contents: monitor, main cabling, RCA-M12 F reduction, remote control, stand, shield, double-sided 3M tape
Note. The monitor does not support HD cameras
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Diagonal | 7.0" |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Weight | 0.801 kg |
