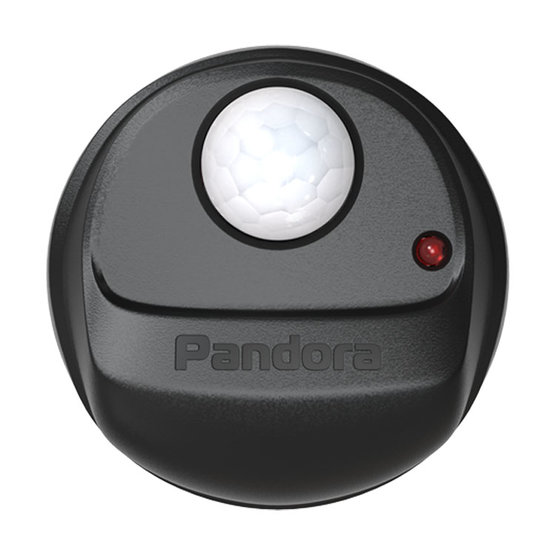

Pandora PIR-100BT wireless infrared motion detector
|
PIR-100BT
Wireless infrared detector PIR-100BT for motion detection for Pandora systems. It is designed for remote detection of unauthorized intrusion into the protected area. It uses infrared technology to identify heat signals created by moving objects.
Wireless infrared detector PIR-100BT for motion detection for Pandora systems. It is designed for remote detection of unauthorized intrusion into the protected area. It uses infrared technology to identify heat signals created by moving objects.
Technical parameters:
- Radio interface: 2.4-2.5 GHz (BT 5.0)
- Motion sensor: Passive infrared
- Detection angle: 120°
- Operating distance: 6 m
- Tamper contact: magnetic field sensor (Hall sensor)
- Battery: CR123A, 3 V
- Operating range: from -10°C to +40°C
- Degree of protection: IP40
- Dimensions: Ø55x21 mm
- Weight: 18 g
Note: Compatible with Pandora security systems with BT 5.0 interface and software version v4.24 and above.
Parameters
| Accessories | Car alarm sensors |
|---|---|
| Type | Alarm accessories |
| Weight | 0.044 kg |
