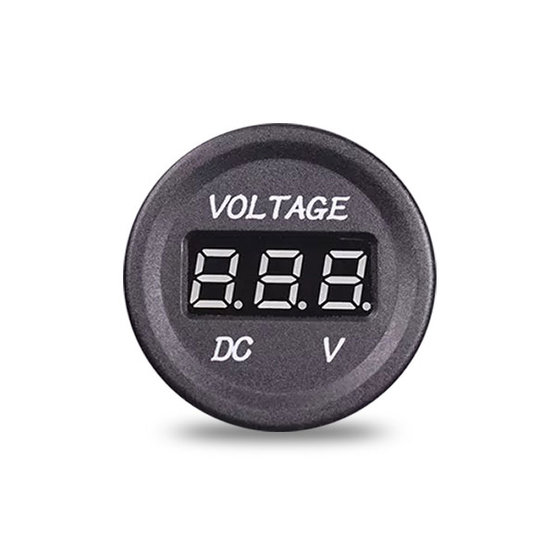

MY1083 Voltmeter, 6-30V, red LED
|
MY1083
The on-board voltmeter is used to prevent battery failures and to check the charging of a vehicle with an on-board voltage of 12/24V. The voltmeter gives you constant information about the state of your battery. It is intended for installation in a panel on the dashboard.
The on-board voltmeter is used to prevent battery failures and to check the charging of a vehicle with an on-board voltage of 12/24V. The voltmeter gives you constant information about the state of your battery. It is intended for installation in a panel on the dashboard.
We recommend a 500mA fuse in front of the voltmeter.
Features:
- voltage range: 6-30V

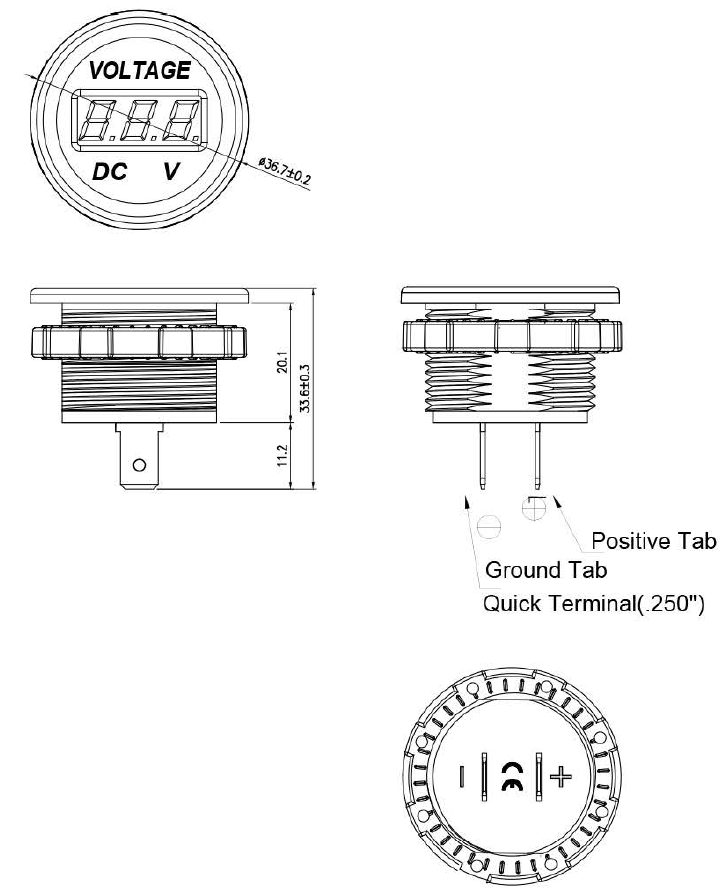

- mounting hole: 29 mm
- LED display color: red
- material: nylon
- fitting: into the MYP002 or MYP004 panel
- connection: using two contacts marked with +/- polarity (must be observed)
Parameters
| Product type | Charging and batteries |
|---|---|
| Weight | 0.017 kg |
