Vehicles

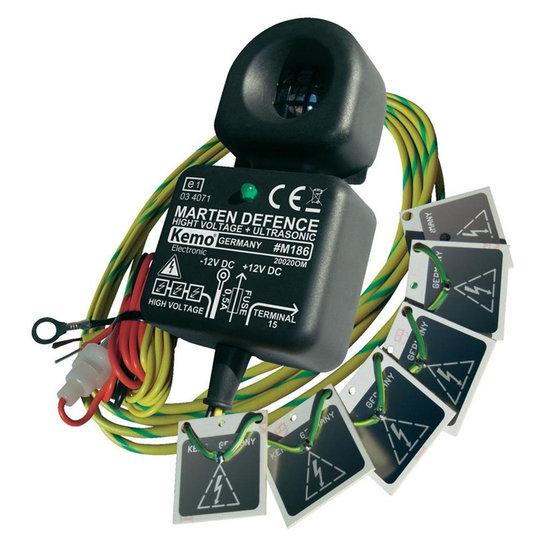

KEMO M186 marten repellent
|
M186
Ultrasonic martens and rodents repellent with 6 high-voltage plates. German quality product designed for use in automobiles, agricultural machinery, tractors, wiring through the vehicle's ignition.
Ultrasonic martens and rodents repellent with 6 high-voltage plates. German quality product designed for use in automobiles, agricultural machinery, tractors, wiring through the vehicle's ignition.
The marten shocker device produces an ultrasonic sound with a frequency of 22 kHz. The device has 6 high-voltage plates on two cables which are charged up by a capacitor in the device to around 300 Volts. The high-voltage plates are mounted in the engine compartment such that a marten entering the compartment and touching one of the plates will get a painful, but not lethal, electric shock. In the time taken for the capacitor to charge up again.
Extremely low power consumption (< 0.005 A), switches the battery voltage of < 11.5 V automatically off (does not discharge the battery completely if vehicles are being parked for quite some time).
device is fastened by means of self-tapping screws or binders in the engine compartment.
Technical Parameters:
- Operating voltage: 12 - 15 V/DC (car battery)
- Average power consumption: < 5 mA
- Automatic shutoff: if the battery voltage decreases to < 11,5 V (± 5%)
- Output voltage: approx. 200 - 300 V/DC
- Ultrasonic frequency: approx. 22 kHz ± 10%
- Acoustic pressure: max. approx. 100 dB ± 15%
- Angle of radiation ultrasonics: approx. 150 degree
- Loudspeaker: special ceramic piezoelectric loudspeaker with spherical membrane of aluminium
- Temperature range: approx. -25 - +80°C
- Functional display: flashing LED (approx. every 5 - 12 sec.)
- Cable length high-voltage cable: 1 x approx. 4 m (± 10%)
- Fuse in the fuse holder: 500 mA
- High-voltage contact plates: 6 pieces, approx. 40 x 40 x 1,5 mm each
- Dimensions basic instrument: approx. 125 x 70 x 31 mm (without cable entry point + LED).
- Cable for terminal 15: If this cable is connected with “positive“, the marten defence disconnects.
- The - marten defence switches on if it is connected with “negative” or does not receive any signal.
- Suitable for vehicles with Can Bus.
- CE certificate
- e1 approval
Parameters
| Producer | Kemo |
|---|---|
| Power supply | 12 V |
| Principle | Ultrasound, Shock |
| Adjustable frequency | No |
| Vibration sensor | No |
| Weight | 0.31 kg |
