BC PGT-EXPERT Rearview camera in brake light
|
BC PGT-EXPERT

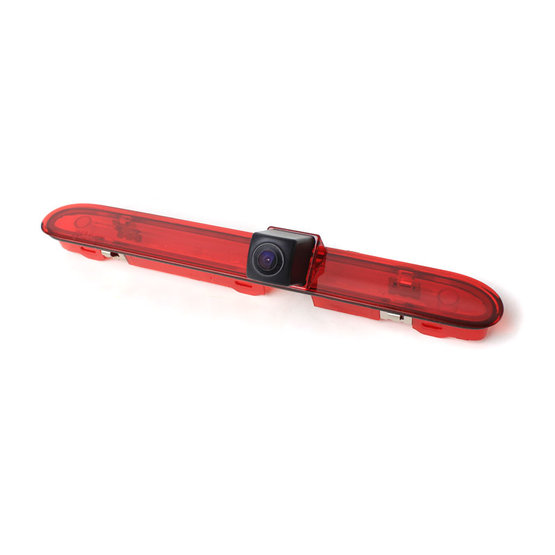

Parking camera integrated in the central brake lightinstalled above the rear wing doors for Peugeot Expert, Citroen Space Tourer, Toyota ProAce vans. Camera with E-mark.
__bc_pgt-expert/1-bc-pgt-expert.jpg "BC PGT-EXPERT Rearview camera in brake light")
__bc_pgt-expert/4-bc-pgt-expert.jpg "BC PGT-EXPERT Rearview camera in brake light")
__bc_pgt-expert/3-bc-pgt-expert.jpg "BC PGT-EXPERT Rearview camera in brake light")
__bc_pgt-expert/2-bc-pgt-expert.jpg "BC PGT-EXPERT Rearview camera in brake light")
Parking camera integrated in the central brake lightinstalled above the rear wing doors for Peugeot Expert, Citroen Space Tourer, Toyota ProAce vans. Camera with E-mark.
Designed for cars:
- CITROEN SpaceTourer (2016->)
- CITROEN Dispatch (2016->)
- CITROEN Jumpy (2016->)
- PEUGEOT Expert [K0] (2016->)
- PEUGEOT Traveller [K0] (2016->)
- TOYOTA Proace (2016->)
- TOYOTA Proace Verso (2016->)
- FIAT Scudo III. (2021->)
Technical parameters:
- sensor: PC3089 1/3"
- Electronic Aperture: 1/50 1/10000 sec.
- Minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 420
- weather protection: IP68
- sensing angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- white balance: automatically
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- Signal cable: 6.2m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
E-mark: E9 10R
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Connectors | CVBS-RCA, M12 |
|---|---|
| Brand of the car | Fiat, Citroen, Toyota, Peugeot |
| Use | OEM |
| Model of the car | Scudo, Dispatch, Jumpy, Traveller, Spacetourer, Expert, Proace, Proace Verso |
| For cars | passenger, commercial |
| Signal | analog |
| Weight | 0.669 kg |
