Steelmate PTS411M7 OEM parking assistant

| PTS411M7 OEM

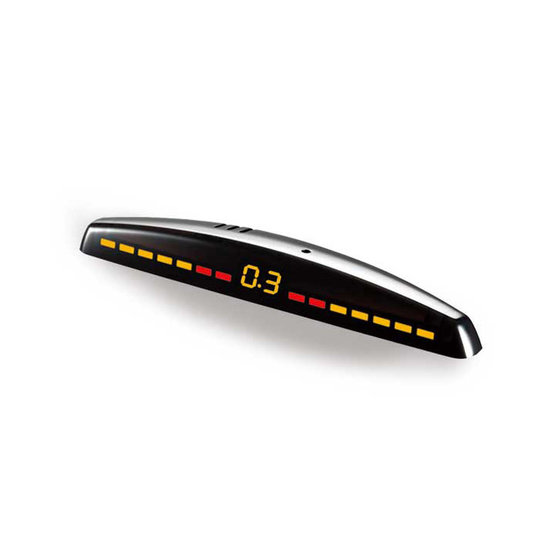

Parking assistant STEELMATE with the option to install as  Rear or Front, with 4 flush adjustable sensors 16 mm and Display M7Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity settinglearning function. The unit is designed for 12V/24V on board voltage cars.


Parking assistant STEELMATE with the option to install as  Rear or Front, with 4 flush adjustable sensors 16 mm and Display M7Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity settinglearning function. The unit is designed for 12V/24V on board voltage cars.

When installing the parking assist in the front bumper, it is necessary to use EXT CABLE KIT extension cables.

System Description:

  • adjustable recessed sensors 16mm
  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • sound and visual alarm indicates the position of obstacles
  • excellent coverage of the entire area behind or before the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • sensors core diameter 14 mm
  • mounting hole 16 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)
  • control unit is not waterproof, must be installed in dry place
  • length of wires to sensors 2.3m

Note: The control unit contains a 3 PIN connector for displayconnection, display with old 8 PIN connector is not compatible!

Parameters

Product type Rear sensors
Manufacturer Steelmate
Sensors colour black matt
Display LED display
Power Suply 12/24VDC
Sensor type Adjustable flush fit 16mm
Weight 0.73 kg
