Discontinued

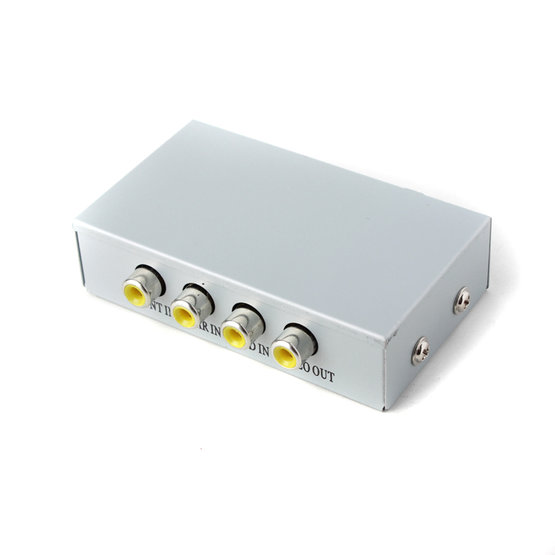

Universal module for connecting the front and rear parking cameras to RCA monitor.
Features:
- 3x video input (front camera / rear camera / DVD device)
- 1x video output for connection to RCA monitor / display / radio
- control automatically or by the button
- displays the image from the rear camera while reversing
- when stop reversing the car or pressing the button, displays the image from the front camera
- set the front camera display time for 10 or 15 seconds
Technical parameters:
- power supply: 12V
- output power for monitor, for front and for rear camera (12V / 1A)
- TV standard: PAL / NTSC
- Input signal: 1V (75 Ohm)
- output signal: 1V (75 Ohm)
- connectors: RCA
- dimensions: 86 x 50 x 23mm (W x D x H)
Note: Parking cameras are intended for aftermarket headunits with RCA video input. Using the original radio may require the video adapter to be connected to the parking camera properly!
Parameters
Plugs | CVBS-RCA |
---|---|
Signal | analog |
Use | UNI |
For cars | commercial, passanger |
Weight | 0.316 kg |
