BC CIT-03 Rearview camera in brake light
|
BC CIT-03

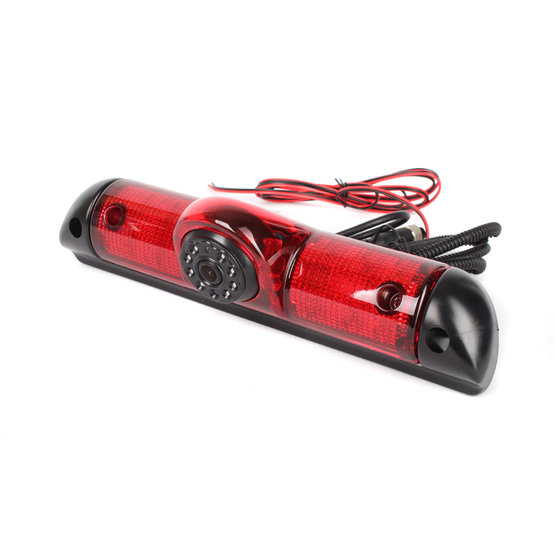

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for vans Peugeot, Fiat, Citroen.
CCD rear view camera integrated in the central brake light installed above the rear hinged doors for vans Peugeot, Fiat, Citroen.
Suitable for cars:
- FIAT Ducato (2006-2014)
- FIAT Ducato [X250] [X290] (2014->)
- PEUGEOT Boxer (2006-2014)
- PEUGEOT Boxer (2015->)
- CITROEN Jumper (2006-2014)
- CITROEN Jumper (2015->)
Technical parameters:
- Sharp CCD 1/4 "sensor chip
- IR LEDs (6 pieces)
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated with RCA connectors (CINCH)
- power cable length 1 m
Camera dimensions:
- base 56 x 263 mm
- pitch of mounting screws 220 mm
- depth of base 35 mm
- mounting screw M7
Parameters
| Use | OEM |
|---|---|
| Brand of the car | Fiat, Citroen, Peugeot |
| For cars | commercial |
| Connectors | CVBS-RCA, M12 |
| Signal | analog |
| Model of the car | Boxer, Ducato, Jumper |
| Weight | 0.924 kg |
