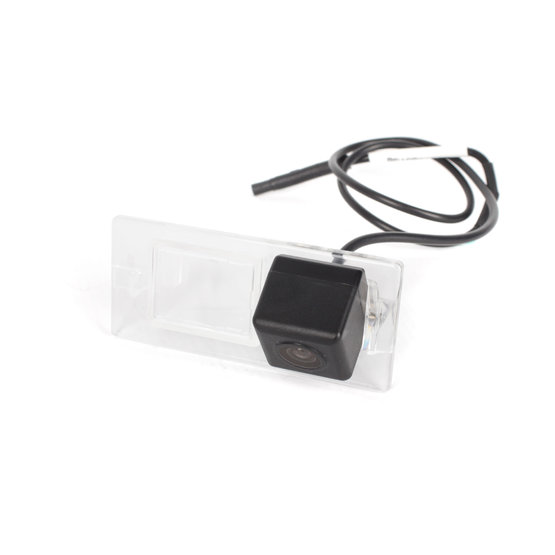

BC FIAT-11 Rearview camera Fiat Freemont

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Fiat Freemont cars.

For cars:

• Fiat Freemont (12-)

Technical parameters:

• sensing sensor: CMOS 1/3"
• option to enable/disable to display the guide lines
• electronic shutter: 1/60 1/10000 sec.
• minimum lighting: 0.05Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• working temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cord: 30cm
• video output: 1.0V / 75 Ohm
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 82 x 36 mm
• pitch 75 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
