Discontinued

BC HON-01 Rearview camera Honda Civic

| BC HON-01

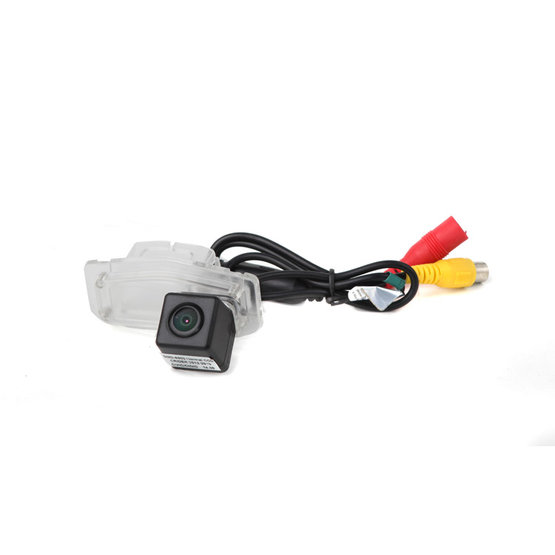

OEM colour parking camera to install into the handle of the 5th door. New LED light, as a replacement of the original light, is included.

Discontinued

OEM colour parking camera to install into the handle of the 5th door. New LED light, as a replacement of the original light, is included.

Assigned for the car models:

HONDA Civic (2012->)

Technical parameters:

sensor: PC3089 1/3"
option to enable/disable to display the guide lines
electronic Aperture: 1/60 1/10000 sec.
minimum lighting: 0.1Lux
signal-to-noise ratio:> 48dB
TV system: NTSC (supported by each monitor/head unit)
number of TV lines: 600
effective pixels 668 × 576 pixels
weather protection: IP67
view angle: 170°
camera body: durable plastics "private housing"
image display: mirror
operating temperature from -30 °C to + 70 °C
AGC, BLC, white balance: automatically
signal cable: 6.2 m long with CINCH / RCA connector
video output: 1.0V / 75 Ohm
power cord length: 1m
power supply: 12V DC
consumption: <1W

Camera dimensions:

base 33 x 70 mm
pitch between attachment points 60 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
