Parking assistant Steelmate PTS410M7

| PTS410M7

Rear parking system STEELMATE with 4 black sensors, with dual-color LED display M7 with digital number. Antihook function for cars with tow-bar, spare wheel or other permanent obstacle. New functions of sensitivity setting, learning function added. Perfect performance under heavy rain environment.

PTS410M7 parking assistant could be supplied with theese sensor types: white, silver, shiny, metal, INT (inner black 25mm), BTI white (inner white 16mm) , BTI silver (inner silver 16mm), BTI (inner black 16mm).


Discontinued Prejsť na nový model

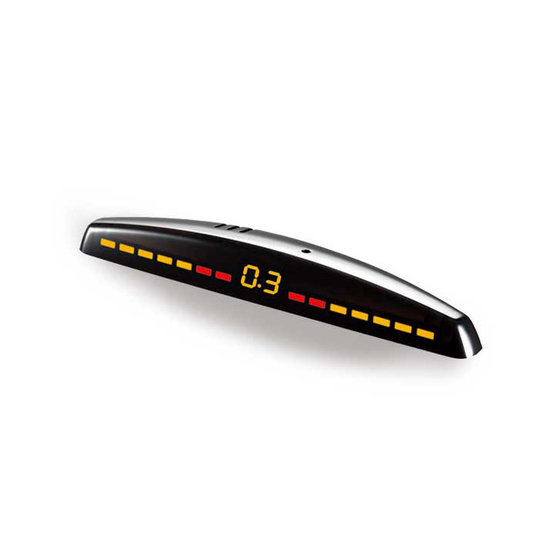

Rear parking system STEELMATE with 4 black sensors and with dual-color LED display M7 with digital number. Suitable for mounting on the vehicles dashboard or rear roof lining. Antihook function for cars with tow-bar, spare wheel or other permanent obstacle. New functions of sensitivity setting, learning function added. Perfect performance under heavy rain environment. Set includes 4 pieces of ultrasonic sensors, control unit, display and wiring. The unit is designed for vehicles with 12V DC only.


System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • visual and acoustic signalisation (beeps changing frequency) indicates the position of obstacles
  • excellent coverage of the entire area behind the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)
  • Technical parameters:
  • Supply voltage: 12V DC
  • Working power: <2.5 W
  • Detection range: 0.1 ~ 2.5 m
  • Operating temperature: -40°C to + 80°C
  • Buzzer: 70 ~ 90 db
  • Sensor diameter 18,5mm
  • Sensor wire length 2,2m

Note: The control unit contains a 3 PIN connector for displayconnection, display with old 8 PIN connector is not compatible!

Parameters

Manufacturer Steelmate
Sensors colour black matt
Power Suply 12VDC
Display LED display
Weight 0.75 kg
