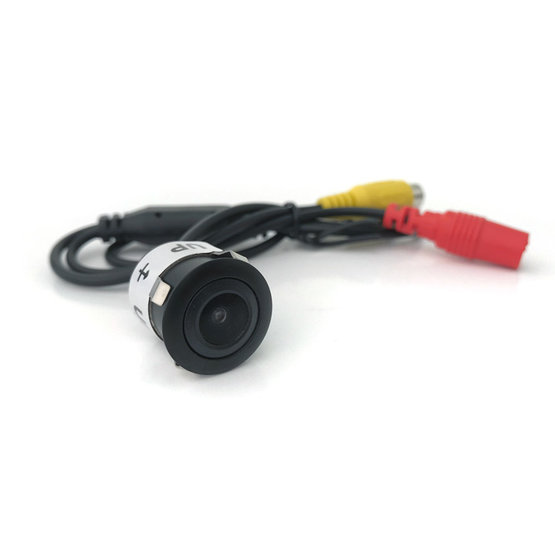

Universal parking camera, diameter 18.5mm, BC UNI-18.5

| BC UNI-18.5

Universal parking camera with guiding lines, 170° view angle, 18,5mm in diameter.

Discontinued

Universal parking camera with guiding lines, 170° view angle, 18,5mm in diameter.

Technical parameters:

PC1030 1/4" sensor
Minimum illumination: 2Lux
TV system: NTSC
resolution: 420 TV lines
power supply 9V-12V
weather protection: IP67
Viewing angle: 170°
mirror image yes
guide lines yes
Video Output: RCA/CINCH 1.0V/75 ohm
working temperature range -20 °C to + 60 °C
camera body measures:
- body diameter 18,5mm
- outer ring diameter 20,5mm
- embeded lenght 20mm
power cable length 1 m
signal cable length of 6m with RCA connectors
Drill tool 18,5 mm - in the package

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Weight	0.186 kg
