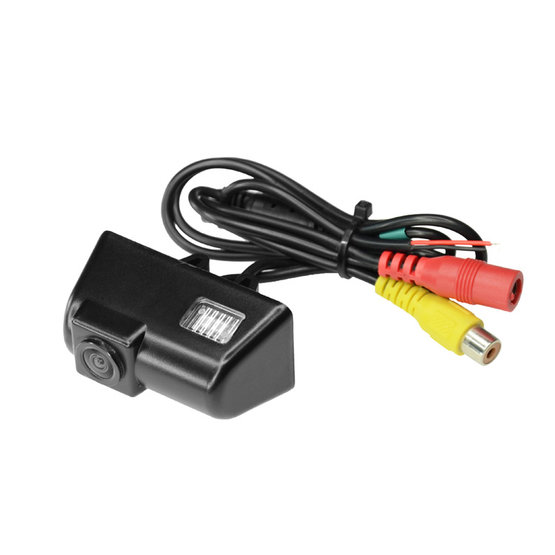

BC FORD-01 Rearview camera Ford Transit
|
BC FORD-01
OEM colour parking camera to install into the rear licence plate light body. New LED light as a replacement of the original light, is included.
OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.
Assigned for the car models:
- FORD Transit (2009 ->)
only for cars with two wings rear door
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 30 x 60 mm
- pitch between attachment points 30 mm
- depth of the camera 30 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Signal | analog |
|---|---|
| Plugs | CVBS-RCA |
| Brand of the car | Ford |
| Use | OEM |
| For cars | commercial |
| Model of the car | Transit |
| Weight | 0.343 kg |
Manuals and support
Need help?
Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
