BC FORD-07 Rearview camera in brakelight

| BC FORD-07

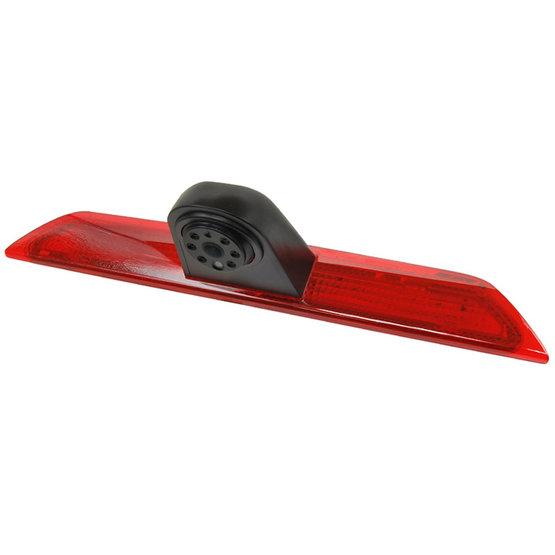

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Ford vans.


CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Ford vans.

Suitable for cars:

  • FORD Transit (2014->)

Technical parameters:

  • Sharp CCD 1/4 "sensor chip
  • IR LEDs (6 pieces)
  • 14 mm diameter lens
  • electronic shutter: 1/50 1/10000 sec.
  • minimum illumination: 0,1Lux
  • signal / noise ratio:> 48 db
  • TV system: NTSC
  • the number of TV lines: 420
  • protection: IP68
  • scanning angle: 170°
  • video Output: 1.0V / 75Ohm
  • white balance: auto
  • working temperature from -30 °C to + 70 °C
  • power and signal cable for the camera: cca.80cm
  • signal cable length 10 m terminated RCA connectors (CINCH)
  • power cable length 1 m

Camera dimensions:

  • base                                 50 x 386 mm
  • depth of base                  30 mm
  • head length with camera 65mm



Parameters

Signal analog
Plugs CVBS-RCA, M12
Brand of the car Ford
Use OEM
Model of the car Transit
For cars commercial
Weight 1.057 kg
