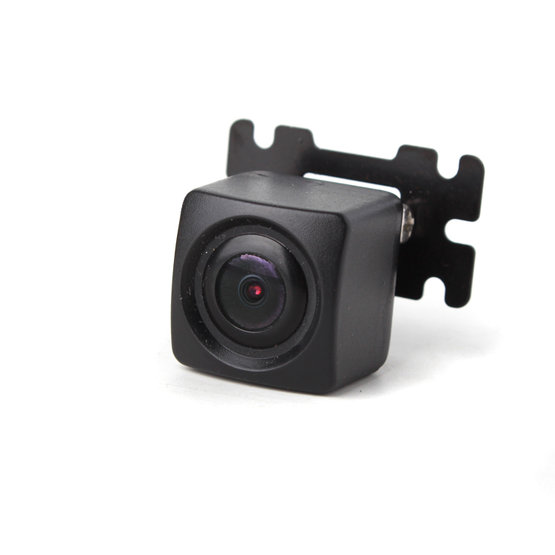

BC FRONT Camera front analog RCA

Rearview camera universal front, or rear, option to turn ON the guide lines, diagonal view angle of 170°.

Technical parameters:

• sensor: PC3089 1/3"
• option to turn ON the guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio: > 48dB
• TV system: NTSC
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• diagonal view angle: 170°
• horizontal view angle: 120°
• image display: true (not mirror)
• option to change to a mirror image
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
