BC IVE-03 Rearview camera in brake light

| BC IVE-03

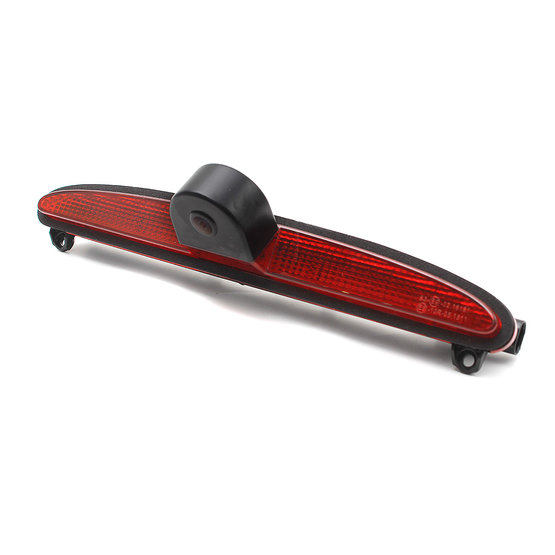

OEM Rear view camera integrated in the central brake light installed above the rear wing door for IVECO Daily IV, V.

Show price

BC IVE-03 Rearview camera in brake light

OEM Rear view camera integrated in the central brake light installed above the rear wing door for IVECO Daily IV, V.

Suitable for cars:

IVECO Daily IV. (11-14)
IVECO Daily V. (14-19)

Technical parameters:

CCD 1/3" scanning chip
lens focal point: f: 2.8mm
TV system: NTSC
video output: 1.0V / 75Ohm
sensing angle: 170°
weather protection: IP69K
camera connector: 4-pin screwdriver
monitor connector: CINCH (RCA)
cable length: 10m
number of scanning pixels: 510x492
horizontal resolution: 420 TV lines
white balance: automatically
minimum lighting: 0.5 LUX
signal-to-noise ratio:> 48dB
Electronic shutter: 1/60 to 1/100000 sec.
power consumption: <3W
supply voltage: 12V
operating temperature from -30 °C to + 70 °C
homologated: yes

Dimensions:

base 240 x 30 mm

Installation:
The camera is integrated in the central brake light located in the left wing door, replacing the original brake light. The brake light signaling is provided with integrated LEDs. The connector is identical to the original connector.

Note: The camera is intended for non-original (aftermarket) units with CINCH (RCA) input. Use of the original radio may require BCMI video adapter to be connected to the parking camera!

Parameters

Use	OEM
For cars	commercial
Brand of the car	Iveco
Signal	analog
Connectors	CVBS-RCA, M12
Model of the car	Daily
Weight	0.595 kg

Manuals and support

Files

Záručný list
252,14 kB Download

Need help?

Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
