BC FORD-04 Rearview camera Ford

| BC FORD-04

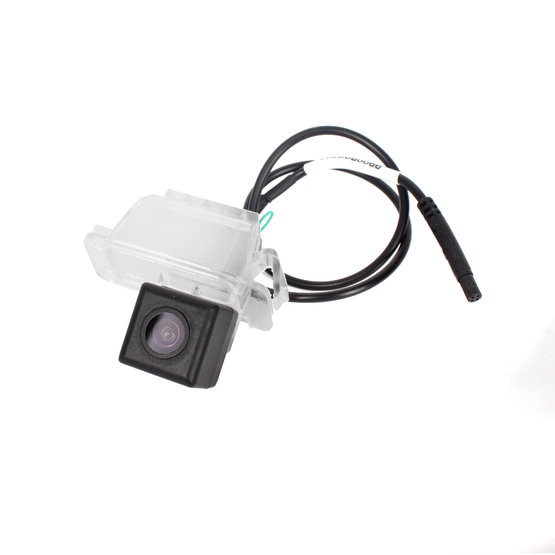

OEM colour parking camera to install into the rear licence plate light body.

OEM colour parking camera to install into the rear licence plate light body.

Suitable for the car models:

  • FORD Mondeo [BA7] (2007->)
  • FORD Focus II. Hatchback [C307] (2008->2011)
  • FORD Fiesta V. (2002-2008)
  • FORD Kuga I. (2/2008-2/2013)
  • FORD S-max (2006->)
  • FORD C-max [DXA](12/2010->)
  • FORD Kuga II. [DM2] (3/2013->)
  • FORD Galaxy (2006->)
  • FORD Transit Custom [FCC] (11/2012->)
  • FORD Tourneo Custom [FAC] (11/2012->) *
  • FORD Transit Connect (9/2013->)
  • FORD Tourneo Connect (9/2013->)

* it is necessary to correct the oppening for the camera by the installation

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 25 x 58 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!


Model of the car Ranger, Fiesta V., XJ, C-max
Brand of the car Ford, Jaguar
Signal analog
For cars commercial, passanger
Weight 0.263 kg
