BC JEE-11 Rearview camera Jeep Compass

| BC JEE-11

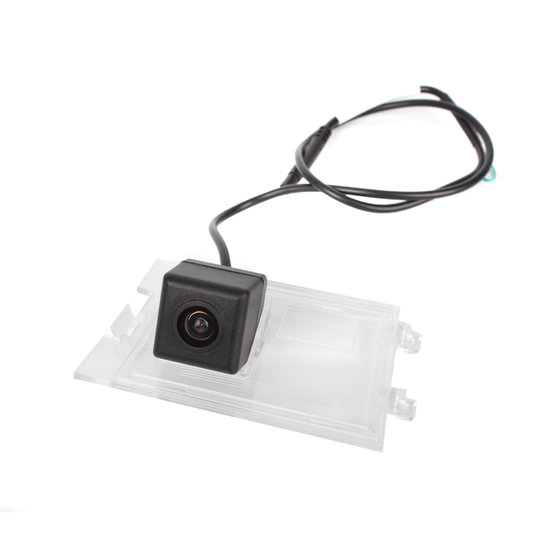

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the original light bulb. For Jeep Compass, Grand Cherokee, Patriot cars.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the original light bulb. For Jeep Compass, Grand Cherokee, Patriot cars.

For cars:

  • Jeep Compass (11-12)
  • Jeep Grand Cherokee
  • Jeep Patriot

Technical parameters:

  • sensing sensor: CMOS 1/3"
  • option to enable/disable to display the guide lines
  • electronic shutter: 1/60 1/10000 sec.
  • minimum lighting: 0.05Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 700 TVL
  • weather protection: IP67
  • horizontal scanning angle: 120°
  • image display: mirror image
  • white balance: automatic
  • working temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 8 m (CINCH / RCA connector)
  • double shielding of the signal cable
  • power cord: 30cm
  • video output: 1.0V / 75 Ohm
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • approximate sides dimensions 82 - 48 - 72 - 50 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use OEM
For cars passenger
Brand of the car Jeep
Signal analog
Connectors CVBS-RCA
Model of the car Compass, Patriot
Weight 0.275 kg
