BC KIA-03 Rearview camera Kia Hyundai

| BC KIA-03

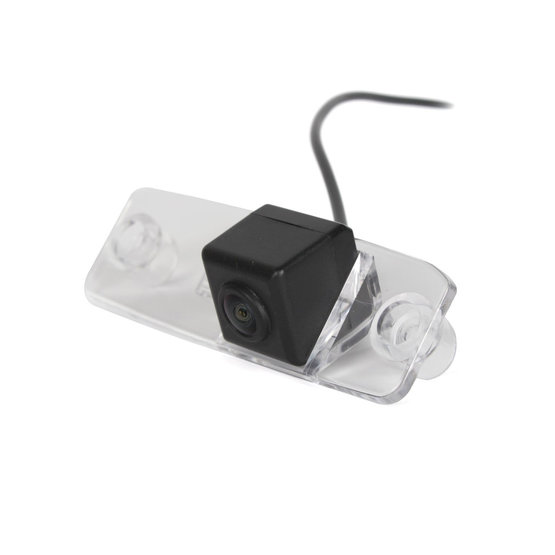

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.


OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.

Suitable for the car models:

  • HYUNDAI Elantra III. (2006-2011)
  • HYUNDAI Sonata
  • HYUNDAI Accent
  • HYUNDAI Tuscon
  • HYUNDAI Terracan
  • HYUNDAI i40 CW (7/2011->) - Kombi
  • HYUNDAI ix55 (11/2008->)
  • KIA Carens III. (2006-2012)
  • KIA Opirus
  • KIA Ceed I. (2007-2010)
  • KIA Ceed II. (9/2009->4/2012)
  • KIA Sportage III. [SL] (08/2010->)
  • KIA Sorento II. (11/2009->)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 32 x 97 mm
  • hole pitch for screws 83 mm


Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Plugs CVBS-RCA
Model of the car Terracan, Carens III., Opirus, i40, ix55, Sportage III., Ceed I., Ceed II., Accent, Sonata, Elantra III., Sorento II., Tucson I.
Brand of the car Hyundai, Kia
Use OEM
Signal analog
For cars passanger
Weight 0.352 kg
