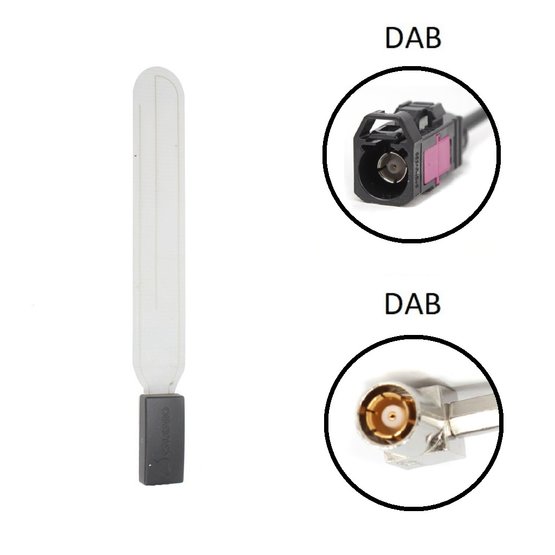

CAL-7677938 Calearo antenna DAB adhesive
Calearo Universal antenna, indoor, adhesive and transparent for glass installation, to receive digital radio signals DAB and DAB +
Discontinued
- supply voltage: 12V DC phantom power supply
- cable length: 3m (impedance: 50Ohms, capacity: 101pF / m)
- connector: FAKRA female or SMA 90 ° female (FAKRA-SMB adapter included)
- frequency range: 174 - 240MHZ (III. band)
- gain: 4 dB
- polarization: vertical
- current consumption: 35mA max.
- working temperature: -40 to + 95 °C
- dimensions: 28 x 2.5 x 1.5 cm (L x W x H)
- weight: 60g
Parameters
| Use | Universal |
|---|---|
| Location | other |
| Signal | DAB |
| Manufacturer | CALEARO |
| Connector | FAKRA |
| Weight | 0.1 kg |
Manuals and support
Need help?
Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
