Discontinued

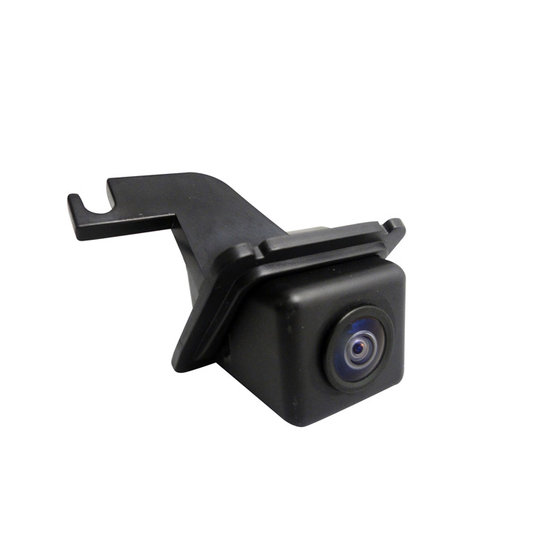

BC LRV-02 Camera to OEM opening Land Rover

| BC LRV-02

OEM colour parking camera to install into the original hole in the space of the rear licence plate number.


Discontinued

OEM colour parking camera to install into the original hole in the space of the rear licence plate number.

Suitable for the car models:

  • LAND ROVER Discovery IV. (9/2009->)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 32 x 40 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Brand of the car Land Rover
Model of the car Discovery IV.
Use OEM
Signal analog
Plugs CVBS-RCA
For cars passanger
Weight 0.35 kg
